MVC S50 + Ceiling Audio System
For Large Meeting Rooms
MVC S50 + Wired Tabletop Mic
For Medium Meeting Rooms
MVC S50 + Wireless Wi-Fi Mic
For Medium-Sized Meeting Room
Designed for medium to large meeting rooms, MVC S50 is a bundle solution with
all-in-one video bar A50 (USB mode)
,mini-PC MCore 4 and touch panel MTouch Plus.It features advanced AI features powered by unrivalled triple 50MP lens system and future-proof computing power,
supporting easy deployment & flexible design.
Three Cameras.
See It All.
A50 (USB mode)'s triple 50MP camera system combines a wide-angle lens and two telephoto lenses
to capture every voice, face, and detail-even in larger spaces.
And when the meeting ends, a physical shutter closes automatically to protect your privacy.
Engineered for Power
The MeetingBar A50 elevates video conferencing with Qualcomm's 8550 processor, delivering 50% more CPU performance and over 10 times the AI processing power. This innovation ensures seamless audio and video experiences in medium to large meeting rooms, enabling intelligent collaboration and crystal-clear communication.
*Data based on comparison with the previous generation chip.
Hear from Qualcomm
The
on-device IntelliFocus
feature displays real-time close-up shots of the recent speakers, enabling you to stay focused on what truly matters. Feel free to make your points just as you would in a face-to-face conversation.
Voice Enhanced with AI-Powered Audio
The A50 delivers full-duplex audio powered by AI-enhanced noise cancellation and reverberation suppression,
so voices come through naturally—without distractions.
With a pickup range of up to 10 meters and support for extension mics,
including ceiling mics, it’s built to adapt to any room and every conversation.
With S50
Without S50
Future-Ready AI Power

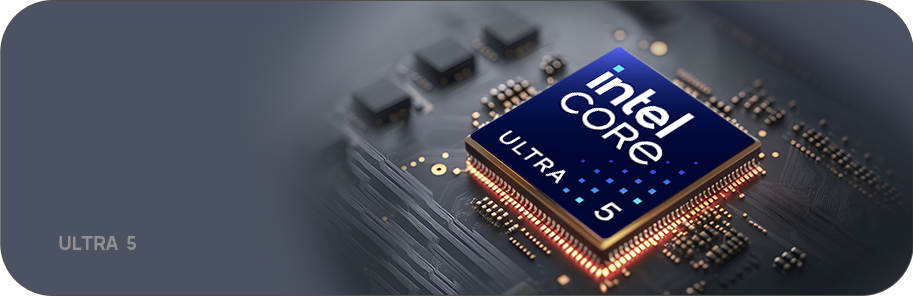

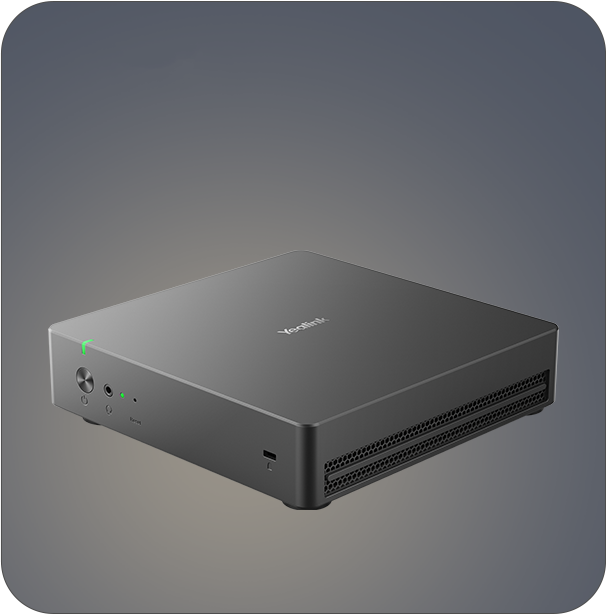

Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module, CEC support, and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control.
With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.
MCore4
Intel
Core
Future-Ready AI Power
Intel Ultra 5 Inside
Integrated NPU
34 TOPS AI Processing
Purpose-Built for Smarter Meetings
Built-In EDID module
CEC support
IP connection to the touch console
Secure by
Design
AVLAN & Internet
Separation
Control Freely
The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.

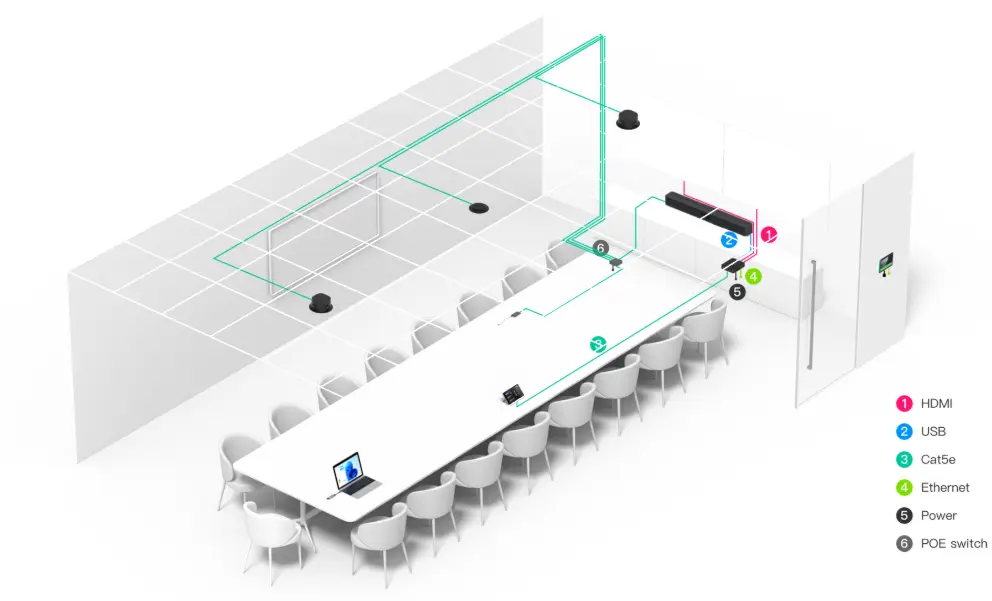

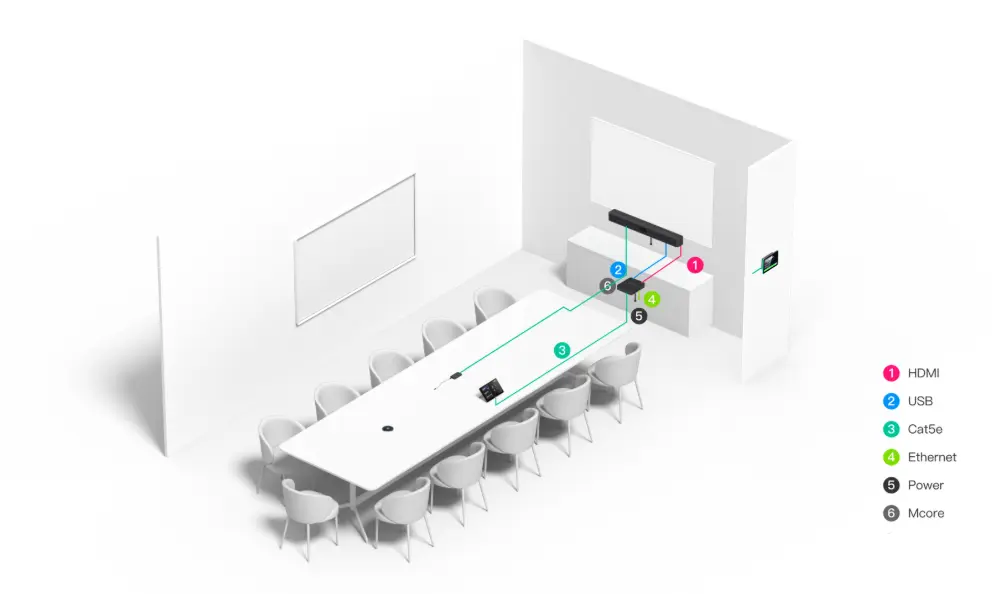

Standard Room Layout Diagrams
Explore 3D models, wiring diagrams, and seating layouts to visualize and implement the optimal standard setup for your conference rooms.
Yealink MVC S50 Specifications
A50 (USB Mode)
All-in-one Video Bar
• Industry-leading triple-eye Camera System
• Angle of view:
1x Wide HFOV 98°, VFOV 81° ; 2x Tele HFOV 41.6° VFOV 31.8°
• Built-in 4 x 5W speakers
• Built-in 16 MEMS microphone array
• Qualcomm QCS8550 inside, 48Tops Computing Power
• Camera AI:
IntelliFocus, Speaker Tracking, Video Fence, People Counting, Picture in Picture, Auto Framing
MCore 4
AI PC
• Processor:
Intel Core Ultra 5, Built-in NPU. 34Tops Computing Power
• Memory:
16GB(2*8GB) DDR5
• Storage:
256GB SSD
• Built-in EDID
• Connectivity
• 3x HDMI video output with CEC supported
• HDMI-in for 4K content sharing
• IP connection with Touch console
• Bluetooth and Wi-Fi
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB3.0
MTouch Plus
Touch Console
1080P Narrow Frame Large Screen
• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30°~70°)
Connectivity
• Support wired and wireless (with WPP30) content sharing
• Support HDMI/USB-C video input
Deployment
• Support desktop placement, desktop fixed, wall-mounted deployment
RoomSensor
Detection:
• Occupancy
• Temperature
• Humidity
• Light
Protocol:
Bluetooth BLE 5.2
• Frequency band:
2.4 GHz
• Reach:
30 m (100 ft)
• Multi-connectivity:
Maximum 4 simultaneously, BLE mesh
This product is intended for business customer and is distributed through authorized business-to-business (B2B) partners.
How Can We Help You?
Not sure how it fits into your environment? Our AV specialists are here to help.
👉 Get deployment advice for your conference room.
👉 Need a quote? Request a custom pricing.
Please fill in and submit the information below and our representative will contact you soon.
FAQ
How to Install the MVC S50-C5U?
How to Install the MVC S50-C5U?
MCore 4 supports:
mount on the wall, mount on the TV, put on a table, mount on the MeetingDisplay (optional) .
MTouch Plus supports:
put on a table, paste on a table, fixed on a table, mount on the wall.
RoomSensor supports:
mount on the ceiling, mount on the wall.
MeetingBar A50 supports:
mount on a wall, mount on the table-top stand, embed in the wall, mount on the MeetingDisplay (requires MD-AVBracket-L, optional) , mount on the VB-TVMount-01 (optional).
MeetingDisplay supports:
install on the MD-WallMount Bracket (optional), Install on the Electric Lift Stand MB-FS-Lift (optional).

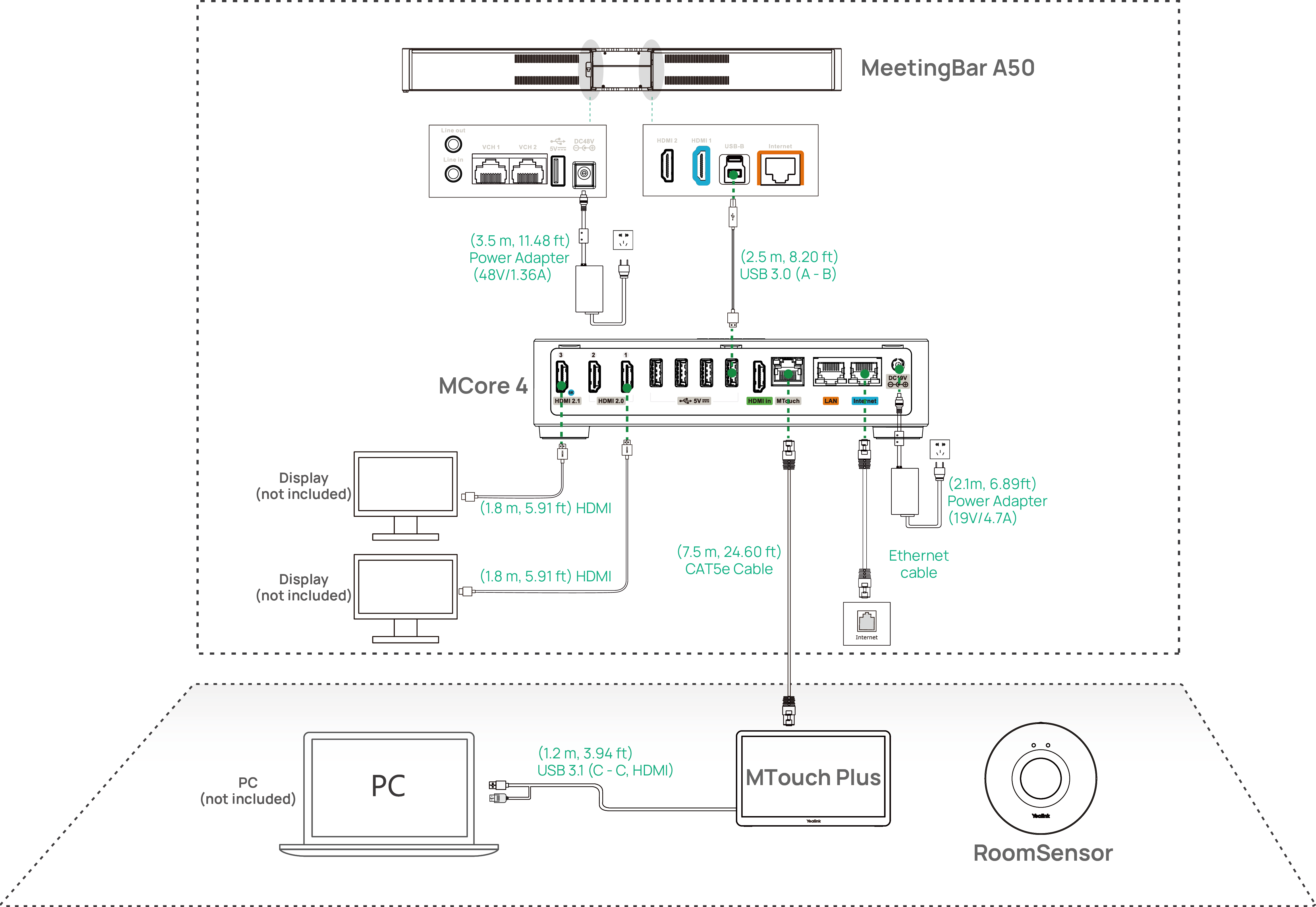

How to Connect the MVC S50-C5U
How to Connect the MVC S50-C5U
Optional 1：Basic Connection
Optional 2: Connect with MeetingDisplay
If not connected to the LAN port of MeetingDisplay, please connect to the external network port.
NOTE
When starting up the system for the first time, you need to connect a mouse to complete the initial configuration. We recommend using the wireless mouse and keyboard kit.
Not included accessories requirements:
PC: Equipped with HDMI or USB-C (support DP protocol) Port.
PoE switch: If you use PoE to connect speakers or cameras, you need to use PoE+.
Ethernet cable: CAT5e or higher ethernet cable.
How to Pair with a Room Sensor
How to Pair with a Room Sensor
Switch the account from Microsoft Teams to Admin.
Open Yealink RoomConnect Software.
Go to MTouch Plus > Device Status > Sensor.
Select Add and follow the on-screen instructions to pair.
NOTE
An MTouch Plus can be paired with only one RoomSensor.
The distance between the MTouch Plus and RoomSensor must be within 20m.
Wireless Sharing
Wireless Sharing
Connect the Wireless Presentation Pod to the USB port of the MTouch Plus.When pairing, the LED indicator of Wireless Presentation Pod is orange. When the pairing is successful, the LED indicator turns green breathing light.
Connect the paired Wireless Presentation Pod to the USB-A/USB-C port on your PC.
On the Wireless Presentation Pod, press the presentation button to share the full screen.

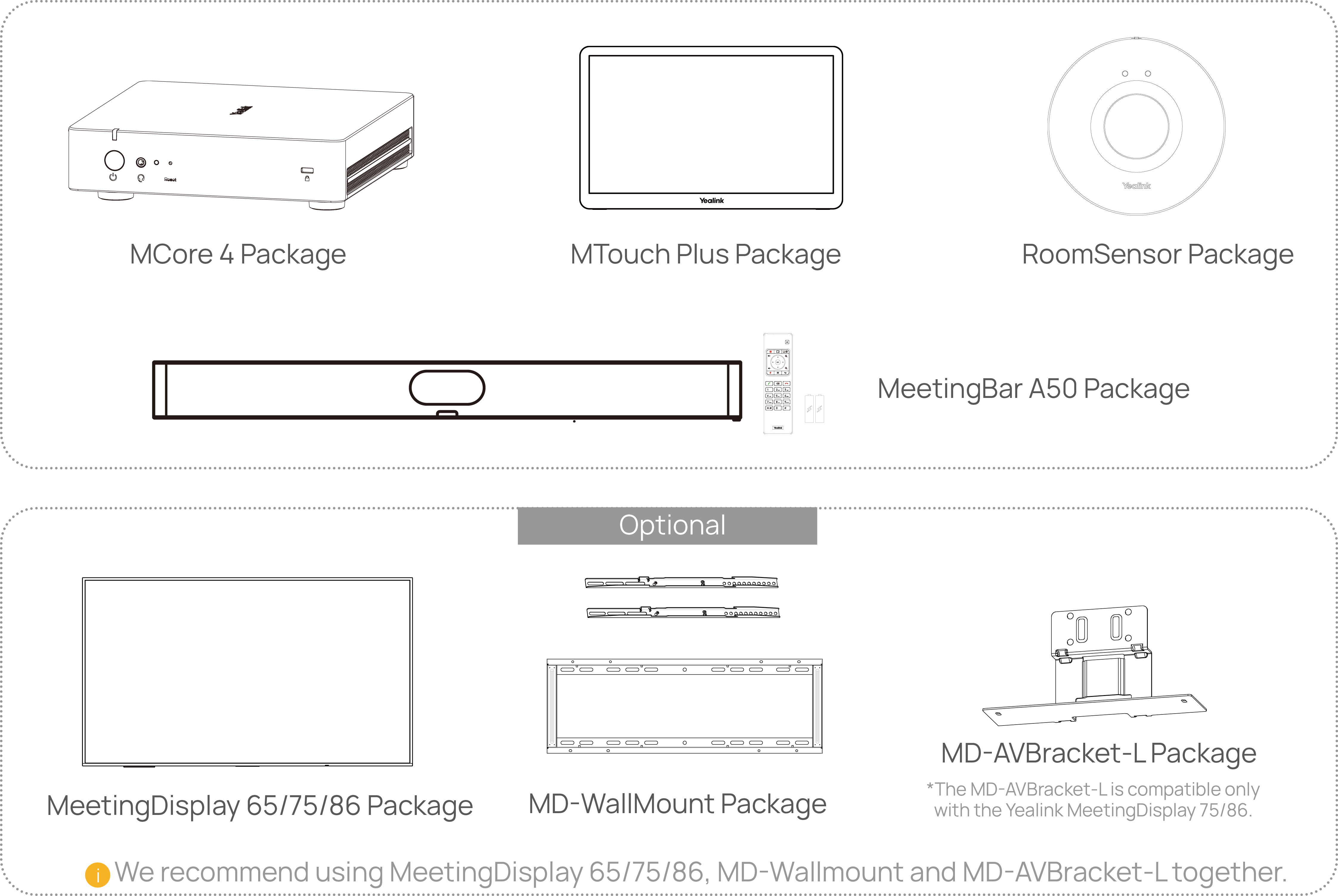

MVC S50-C5U Package Contents
MVC S50-C5U Package Contents
MCore 4 package
MCore 4 package details see MCore 4 Installation.
MTouch Plus package
MTouch Plus package details see MTouch Plus Installation.
RoomSensor package
RoomSensor package details see RoomSensor Installation.
MeetingBar A50 package
MeetingBar A50 package details see MeetingBar A50 Installation.
MVC S50 Key Features and Benefits
MVC S50 Key Features and Benefits
Ultra HD picture quality and artificial AI features
built-in triple-camera system
The MeetingBar A50 features a built-in triple-camera system, each with a 50MP resolution—one for wide-angle and two for telephoto, ensuring high-resolution imaging across various focal lengths. The professional-grade lens delivers low grain, natural colors, and HD image quality. It also features a built-in automatic physical privacy shutter that blocks the camera when not in use, providing users with enhanced privacy protection.
intelligent AI features
The intelligent AI features include IntelliFocus, Video Fence, and more. It can automatically detect speakers in the meeting room, frame them, and display them on the screen through multi-stream output, providing a more intuitive and interactive remote meeting experience.
Seamless Meeting Experience with Native Microsoft Teams Integration
The entire MVC S50-C5U bundle is equipped with a native Microsoft Teams user interface, ensuring a familiar and intuitive experience for users.
The MTouch Plus touch panel provides easy access to one-click conferencing, call control, camera adjustments, and content sharing.
At the same time, the RoomSensor automatically wakes up the system as participants enter the room. This seamless integration ensures that meetings start effortlessly and run efficiently, enhancing productivity and collaboration.
Outstanding Data Processing Capability
At the core of the MVC S50-C5U is the MCore 4, powered by the Intel Ultra5 125H processor, which boasts exceptional data processing capabilities and powerful AI computing capabilities with its NPU.
It ensures smooth and efficient meetings, enabling intelligent conferencing features. The MCore 4 empowers bright meeting rooms, providing a stable and efficient operating environment for immersive remote communication.
Real-Time Content Sharing for Enhanced Collaboration
The bundle supports both wireless and wired content sharing for maximum flexibility. Wireless content sharing is made simple with the Yealink sharing dongle, which supports wireless sharing at 1080p/30fps resolution for a superior viewing experience.
Wired content sharing is supported by connecting the MTouch to a USB-C or HDMI port on a laptop using the MTouch cable.
Additionally, the MCore 4 is equipped with an HDMI-In interface, supporting 4K resolution auxiliary stream input to ensure lossless image presentation, further enhancing the content sharing experience.
Simple Deployment and Easy Use
A single CAT5e cable is sufficient to connect the MCore 4 and MTouch Plus, enabling both data transmission and power supply without the need for additional cables or power sources. Additionally, the RoomSensor operates via Bluetooth (BLE), eliminating the need for extra cables.
Remote Device Management
These devices can support the Yealink Device Management Platform/Cloud Service, enabling remote management, monitoring, configuration, updates, and diagnostics of all connected devices. This feature ensures that your meeting room is always up-to-date and operating at peak performance.
Preloaded Software on MVC S50
Preloaded Software on MVC S50
• Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Teams Rooms App
• Yealink RoomConnect
note：
Last Updated: September 11, 2025
For more details, please visit the MVC S50 Datesheet.
