WH68
4-Mic for Hybrid ANC
DECT & Bluetooth Hybrid Wireless Technology
4-Mic Noise Cancellation&Acoustic Shield Technology 3.0
WH68
4-Mic for Hybrid ANC
DECT & Bluetooth Hybrid Wireless Technology
4-Mic Noise Cancellation&Acoustic Shield Technology 3.0
WH68 Specifications
Part Number
Part Number
Overview
Keywords
• DECT & Bluetooth Hybrid Wireless Technology
• 4-Mic for Hybrid ANC
• 4-Mic Noise Cancellation&Acoustic Shield Technology 3.0
• All-Day-Wearing Comfort
• Up to 185m/606ft Wireless Range
Key Features
• 4-Mic for Hybrid ANC
• DECT & Bluetooth Hybrid Wireless Technology
• 4-Mic Noise Cancellation&Acoustic Shield Technology 3.0
• All-Day-Wearing Comfort
• Compatible with various manufacturers' phones and UC platforms
• Up to 185m/606ft Wireless Range
•Built-in Busylight and External Busylight (Optional)
• Talk Time
DECT Mode: Up to 16 Hours;
Bluetooth Mode: Up to 32 Hours
Introduction

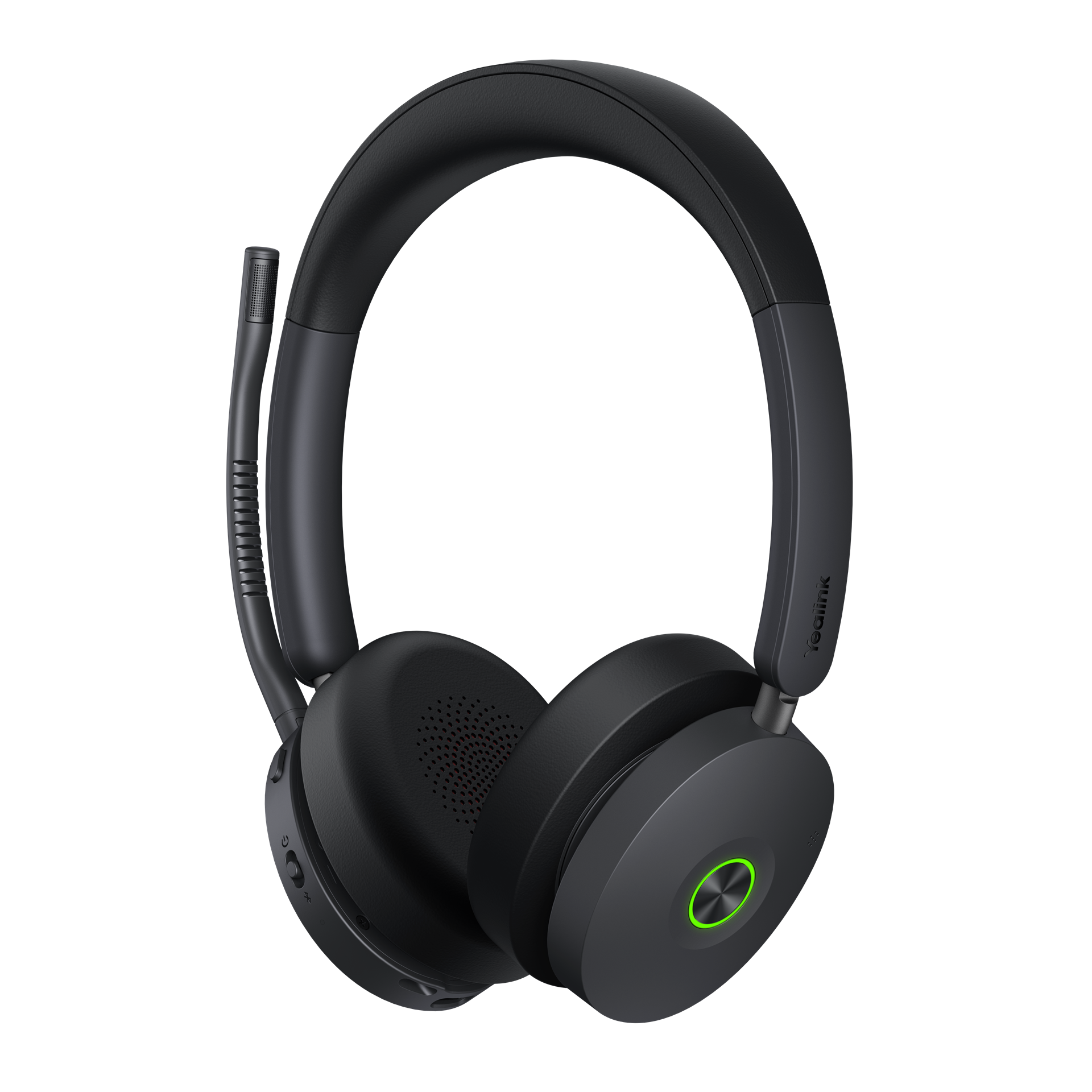

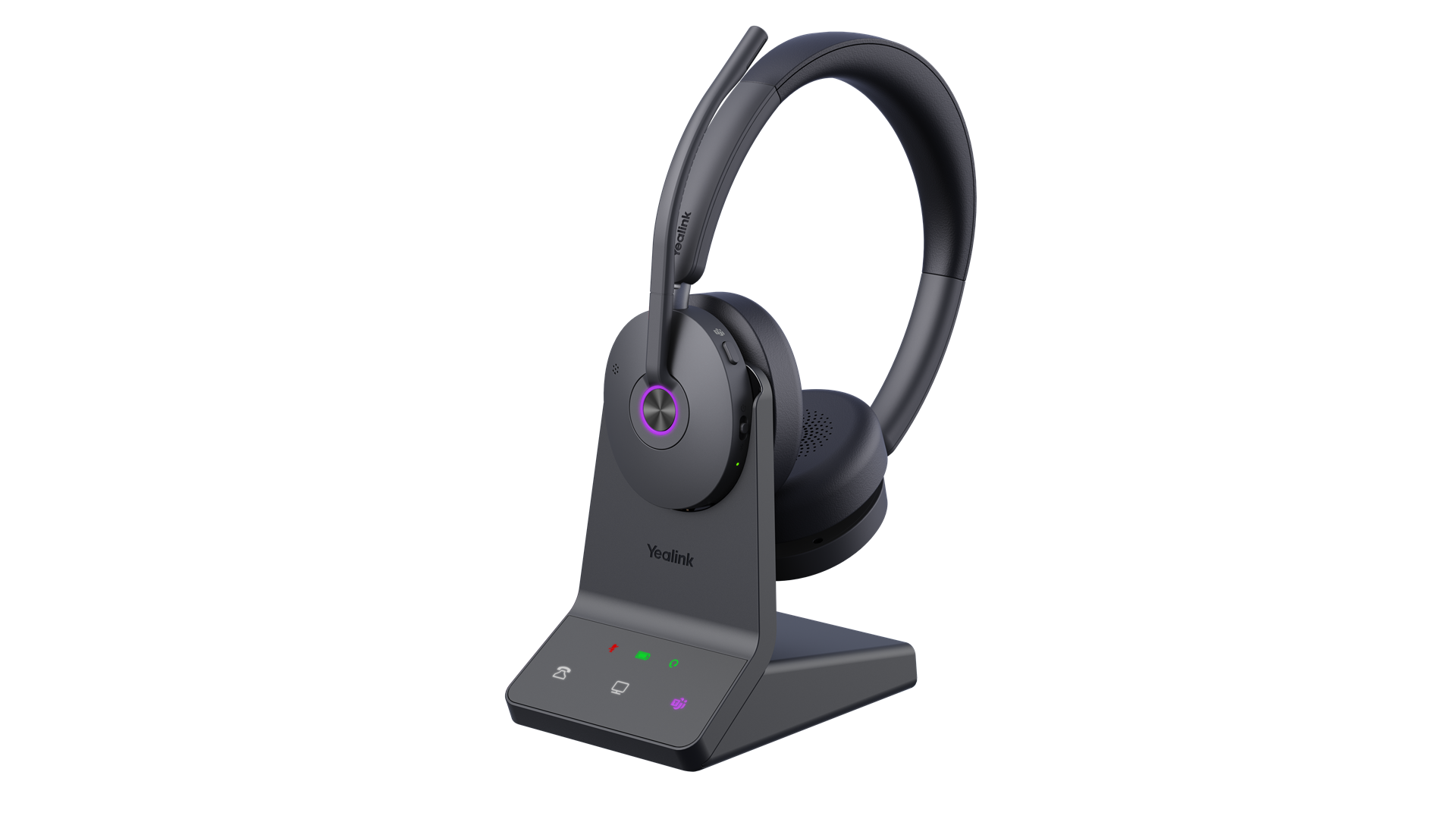

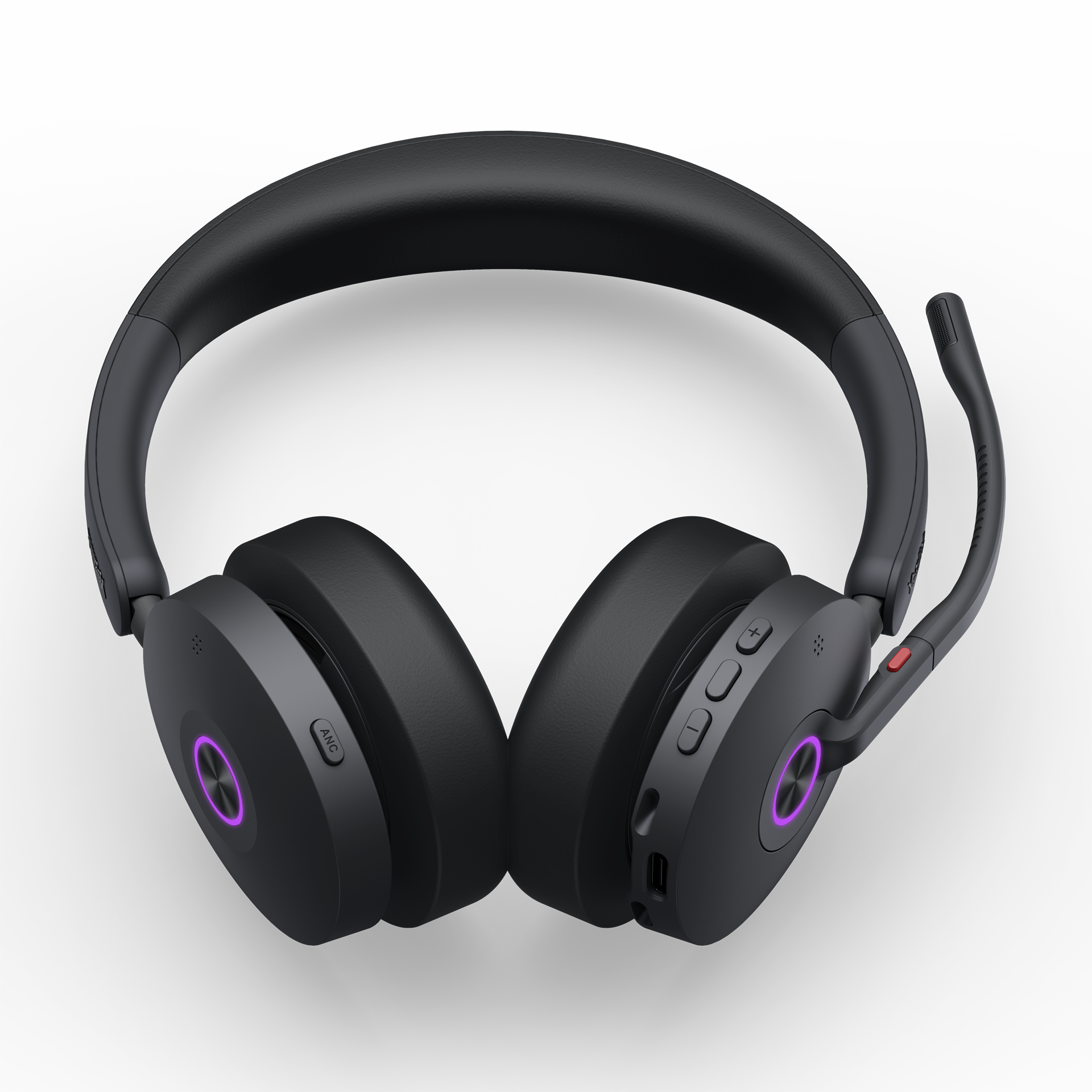

The Yealink WH68 headset is designed for efficient communication, integrating DECT and Bluetooth dual-mode technology for seamless multi-device switching. Equipped with four intelligent noise-canceling microphones and ANC (Active Noise Cancellation) technology, it effectively eliminates environmental noise interference, ensuring crystal-clear calls and helping professionals stay focused on enhancing work efficiency.
General
Weight
155g
Wearing style
on-ear
Audio
Microphone
• Microphone quantity: 6
• Microphone frequency response range: 100Hz-10kHz
• Acoustic Shield: √
• Active Noise Cancellation: √
• User Hearing Protection: √
Speaker
• Speaker size: Ø 30mm
• Speaker sensitivity: 129±3dB 0.980V
• Speaker frequency response range: 20Hz-20kHz
• Speaker bandwidth:
- Music mode: 20Hz-20kHz
- Talk mode: 100Hz-8kHz
Battery
Battery
• Talk time:
- DECT mode: up to 16 hours;
- Bluetooth mode: up to 32 hours
• Music time:
- DECT mode: up to 19 hours
- Bluetooth mode: up to 48 hours
• Standby time: 195 hours
• Charging time: 1.5 hours (5 V/1.2 A)
Connectivity
Connectivity
• Connection type: Bluetooth® 5.3; DECT™
• Wireless range: up to 185m/606ft
• Secure DECT (level): Step C
• Connectivity: USB connectivity to PC&IP phone
• Frequency bands:
- 1880 ‒ 1900 MHz (Europe),
- 1920 ‒ 1930 MHz (US)

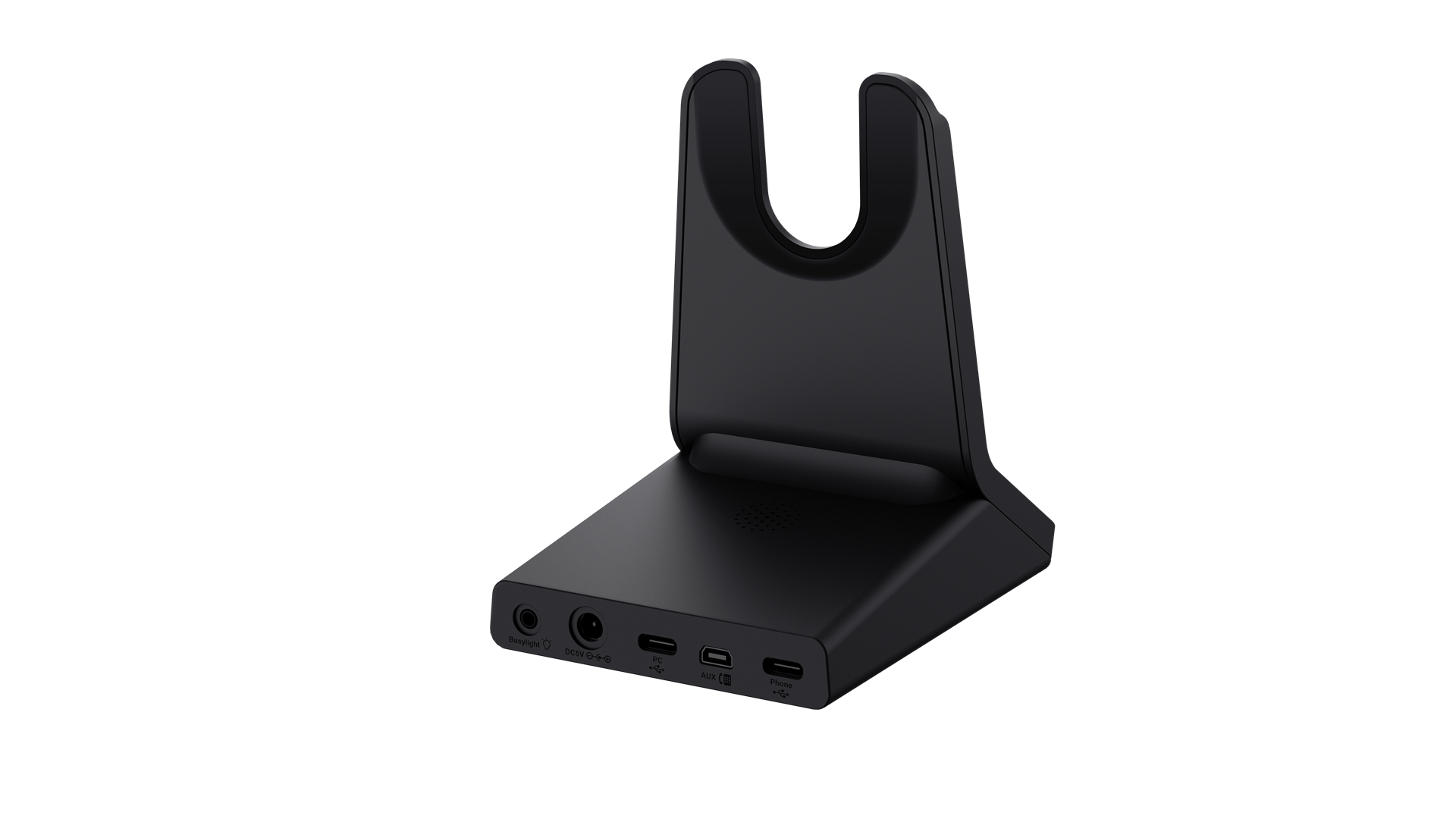

• Connection:
- 2 * Type-C USB 2.0 port
- 1 * Mini USB port
- 1 * DC power port
- 1 * busylight port
- 1 * Type-C USB 2.0 (on headset)
• Bluetooth® device: Yes, in headset
• Bluetooth version: Bluetooth5.3
• Supported Bluetooth® profiles: HFP v1.8，A2DP v1.3.2，AVRCP v1.6.2，SPP v1.2
• Operating range: up to 50m/164 feet
Configuration & Management
Management
• Yealink USB Connect (PC)
• Yealink Management Cloud Service
Package Contents
• Power adapter
• Dual Headset

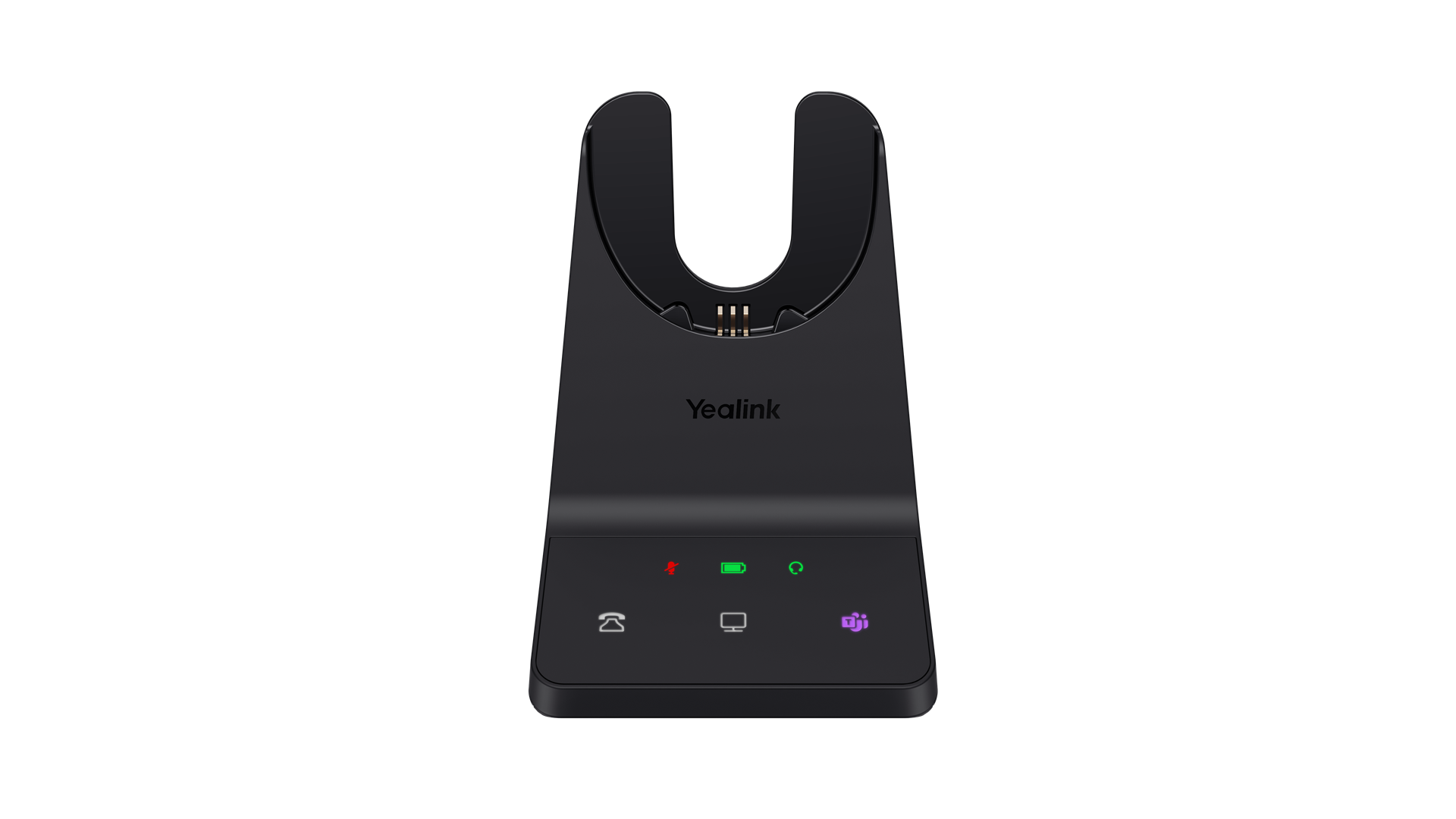

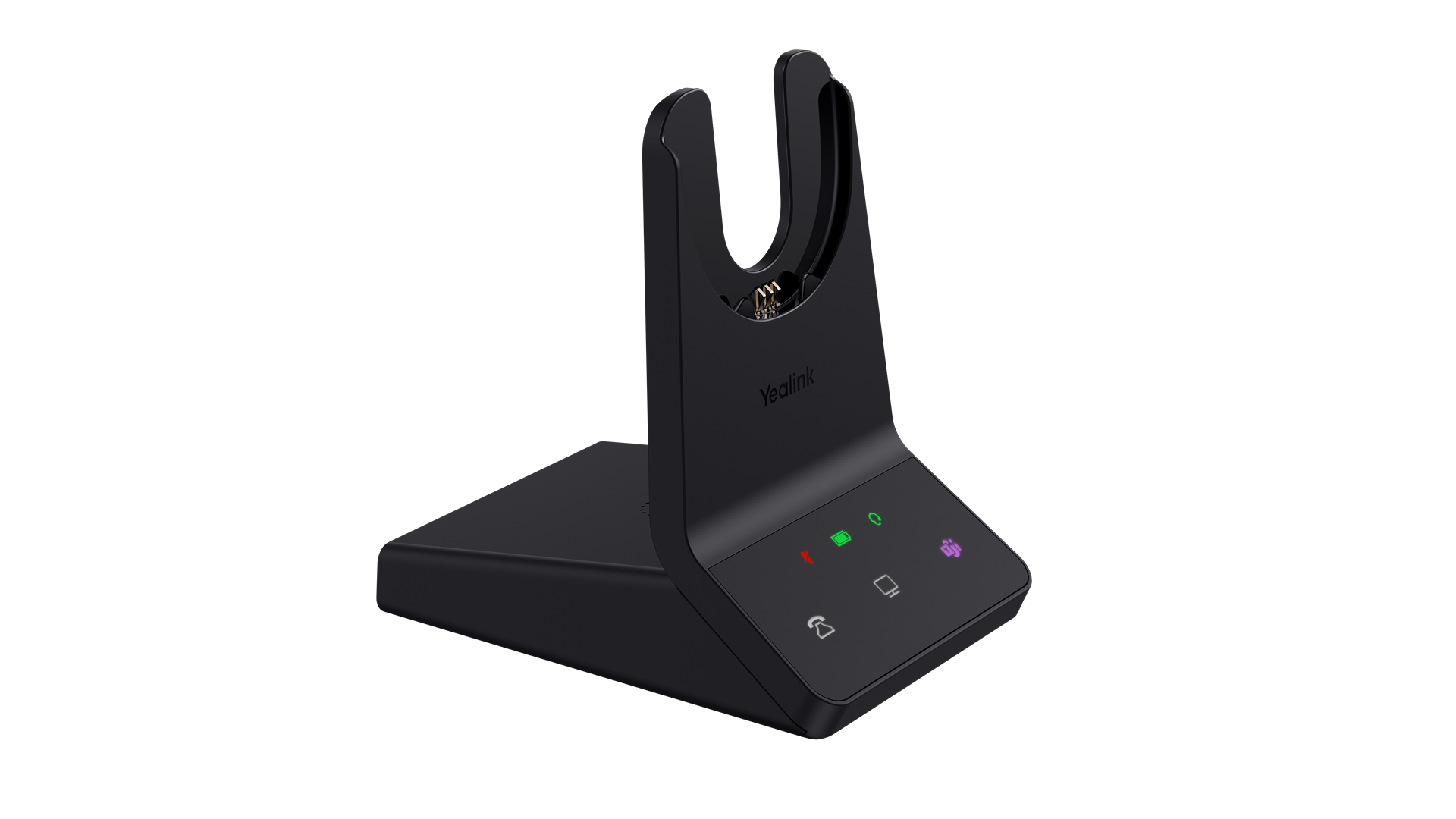

• WHB680 Base
• Carrying Case
• 1* 1.2m USB-C to USB-C cable
• 1* 1.2m USB-C to USB-A cable
• Quick Start Guide
