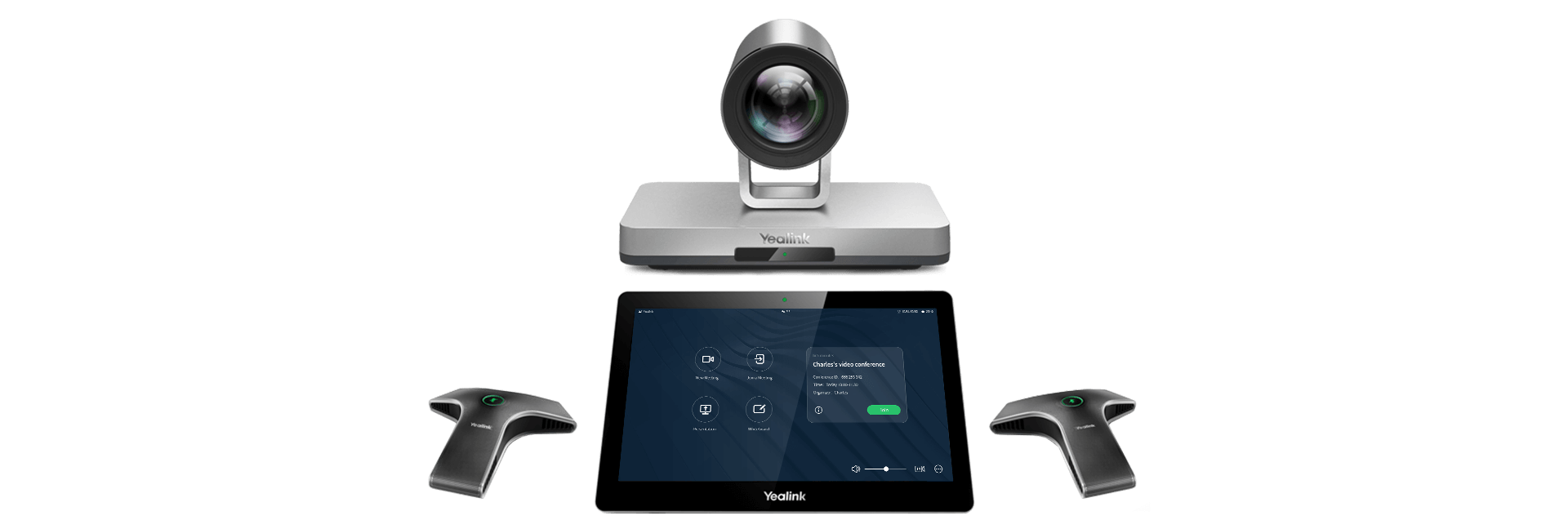

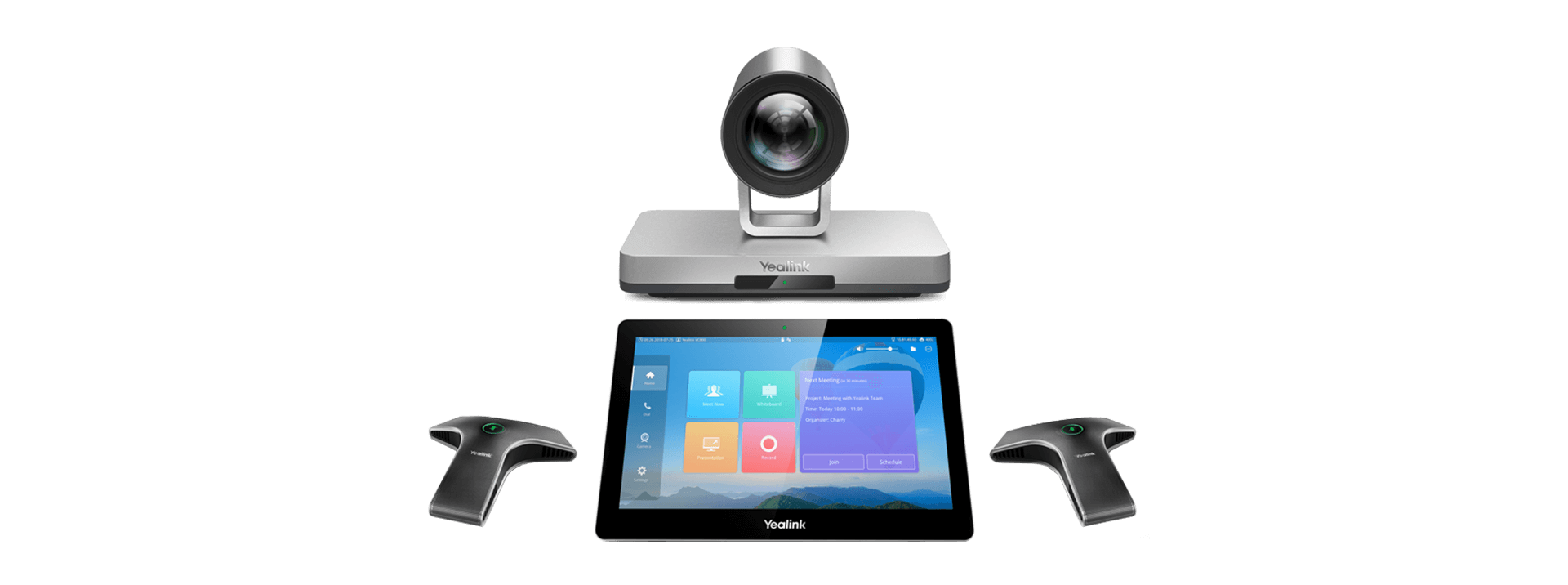

    Yealink VC800 video conferencing system


    VC800 Video Conferencing System
    Designed for Better Collaboration



    VC800 Video Conferencing System
    Designed for Better Collaboration


    Yealink Next-Gen One-stop Video Conferencing Solutions

    Watch the video
    Yealink VC800 video conferencing system

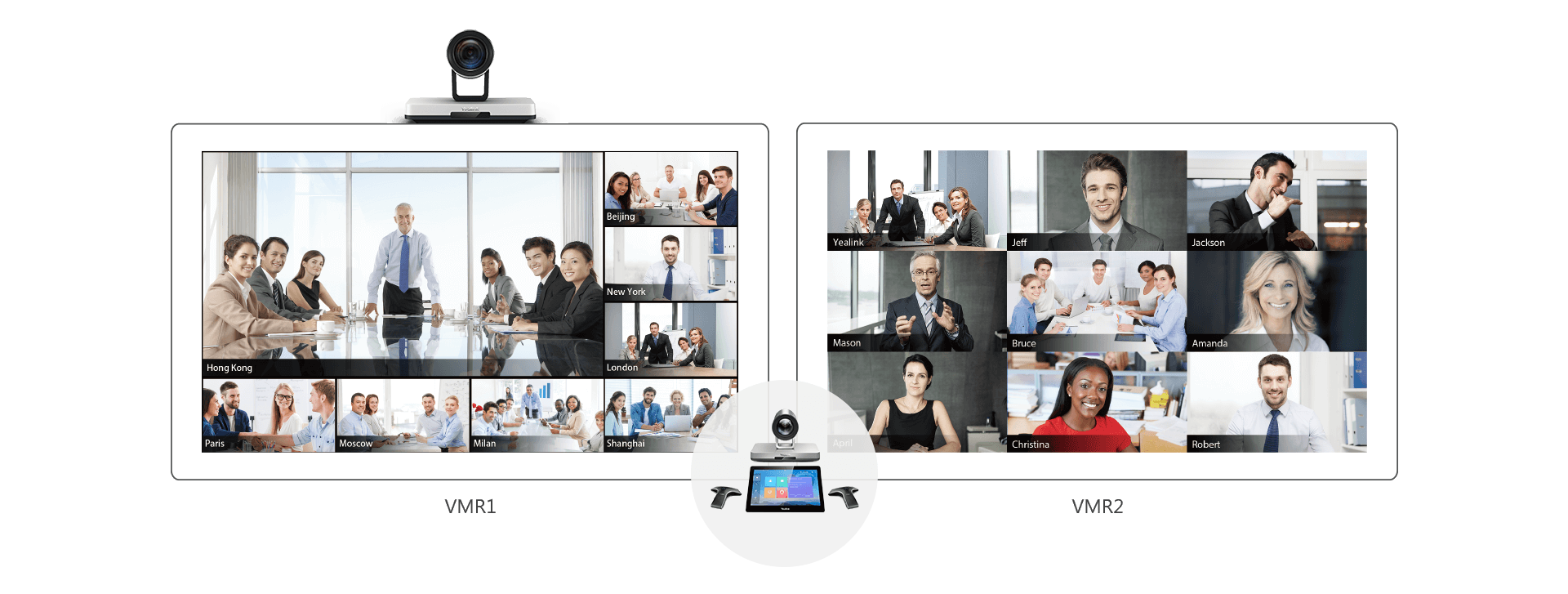

    Satisfy Multipoint Conference Needs Thanks to the Powerful MCU


    Yealink VC800 room system is designed to solve small and medium company’s multi-party conference needs. Equipped with the powerful built-in MCU, Yealink VC800 supports 24-site HD video conferencing capacity and it can be divided into 2 Virtual Meeting Rooms which perfectly meets modern workplace long-distance communication needs.



    Satisfy Multipoint Conference Needs Thanks to the Powerful MCU


    Yealink VC800 room system is designed to solve small and medium company’s multi-party conference needs. Equipped with the powerful built-in MCU, Yealink VC800 supports 24-site HD video conferencing capacity and it can be divided into 2 Virtual Meeting Rooms which perfectly meets modern workplace long-distance communication needs.



    Yealink VC800 video conferencing system

    The Most Powerful Multi-Camera Solution Ever


    The VC800 multi-camera solution enables up to 9 cameras to work at the same time. You can control each camera separately, put all cameras in one picture, or set certain picture larger/full screen. The deployment is simple by connecting VC800 and VCC22 cameras to PoE switch only with Ethernet cables, no need for extra power supplies for VCC22, or extra video matrix.



    The Most Powerful Multi-Camera Solution Ever


    The VC800 multi-camera solution enables up to 9 cameras to work at the same time. You can control each camera separately, put all cameras in one picture, or set certain picture larger/full screen. The deployment is simple by connecting VC800 and VCC22 cameras to PoE switch only with Ethernet cables, no need for extra power supplies for VCC22, or extra video matrix.



    Yealink VC800 video conferencing system

    Interaction And Collaboration Enhance The Conference Experience Comprehensively


    • Multiple participants can annotate content sharing at the same time, assisting high-efficient video conference.
    • Multi-party interaction on electronic whiteboard, real-time synchronization of each party's writing track, and a variety of handwriting options all help to bring a better collaborative experience.
    • Supports local multi-screen interaction. Paring with WPP20, users can easily realize reverse control of computer via touchable TV or CTP20.



    Interaction And Collaboration Enhance The Conference Experience Comprehensively


    • Multiple participants can annotate content sharing at the same time, assisting high-efficient video conference.
    • Multi-party interaction on electronic whiteboard, real-time synchronization of each party's writing track, and a variety of handwriting options all help to bring a better collaborative experience.
    • Supports local multi-screen interaction. Paring with WPP20, users can easily realize reverse control of computer via touchable TV or CTP20.



    Yealink VC800 video conferencing system


    6-Meter Full-Duplex High-Quality Sound Pickup, Smart Noise Proof


    • The microphone features 360 ° omnidirectional high-quality voice pickup in radius of 6 meters. By maximum cascade of four microphones, the voice pickup scope can be effectively expanded. Matching with Yealink MSpeaker, the audio effect would be more excellent.
    • Yealink patented smart noise proof technology eliminates the noise of keyboard, mouse click and other non-voice interference intelligently, making the communication more focused.


    6-Meter Full-Duplex High-Quality Sound Pickup, Smart Noise Proof


    • The microphone features 360 ° omnidirectional high-quality voice pickup in radius of 6 meters. By maximum cascade of four microphones, the voice pickup scope can be effectively expanded. Matching with Yealink MSpeaker, the audio effect would be more excellent.
    • Yealink patented smart noise proof technology eliminates the noise of keyboard, mouse click and other non-voice interference intelligently, making the communication more focused.

    Yealink VC800 video conferencing system

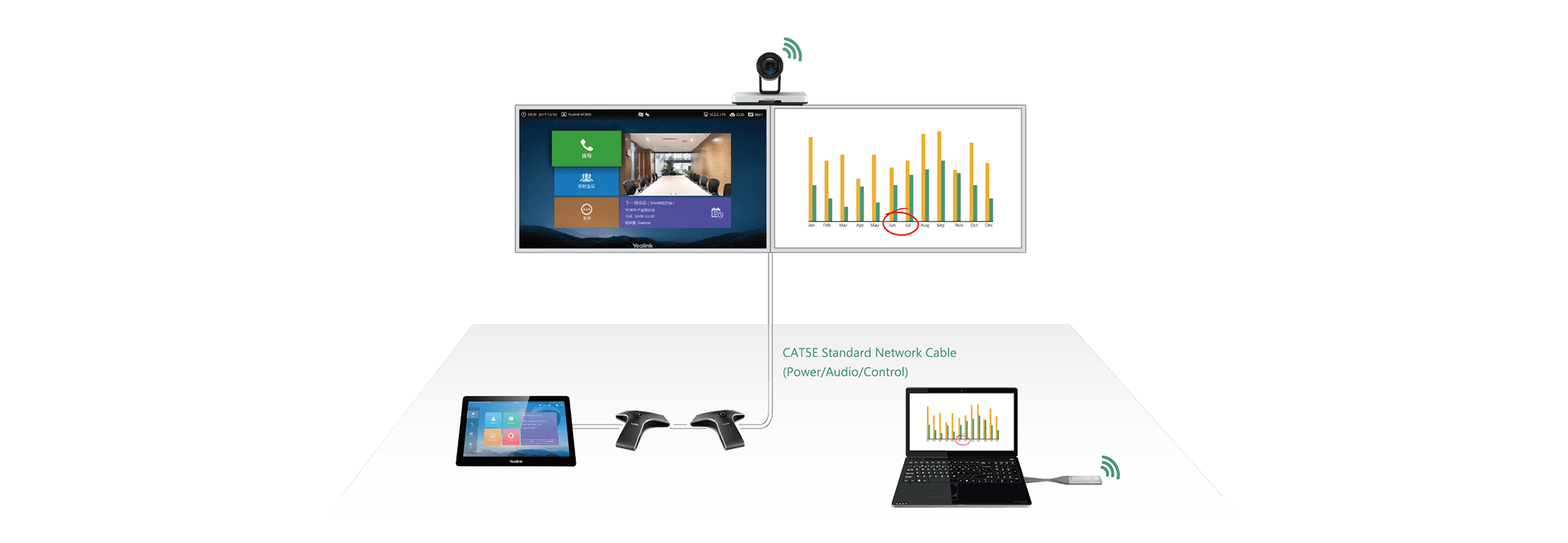

    All-in-one Design Creates Easier Meeting Experience and Simpler Deployment


    Yealink VC800 owns compact design which combines codec and camera together, only one standard RJ45 network cable could connect TV area and conference table.Brand-new intuitive user interface and touchable phone make meeting simpler to control.




    All-in-one Design Creates Easier Meeting Experience and Simpler Deployment


    Yealink VC800 owns compact design which combines codec and camera together, only one standard RJ45 network cable could connect TV area and conference table.Brand-new intuitive user interface and touchable phone make meeting simpler to control.




    Yealink VC800 video conferencing system


    Compatibility and Integration


    Support standard H.323/SIP dual protocol. Deeply integrated with Yealink Meeting Server(YMS), Yealink VC800 supports Meeting Scheduling and One-touch Meeting Access. By working with Yealink Cloud Management Service, Yealink VC800 also brings quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms.


    Compatibility and Integration


    Support standard H.323/SIP dual protocol. Deeply integrated with Yealink Meeting Server(YMS), Yealink VC800 supports Meeting Scheduling and One-touch Meeting Access. By working with Yealink Cloud Management Service, Yealink VC800 also brings quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms.

    Contact us

    Please fill in and submit the information below and our representative will contact you soon.

    Name*

    E-mail Address*

    Company*

    Country*

    Tel*

    Your requirement*

    Model VC800-VCM-CTP VC800-Phone
    Show the differences
    Download Datasheet Datasheet
    Multipoint Maximum multipoint capability up to 24 sites up to 24 sites
    Virtual meeting rooms 2 2
    Automatic voice activated switching layout
    Camera Features Zoom 12X optical 12X optical
    Frame rate 60 FPS 60 FPS
    Horizontal field of view 70° 70°
    Multi-camera solution Support up to 1+8 cameras Support up to 1+8 cameras
    Video Features Video call quality up to 1080p60fps up to 1080p60fps
    Bandwidth requirement 1080P from 512kbps in H.265 1080P from 512kbps in H.265
    Video packet Loss recovery 30% 30%
    Local HD recording to USB flash drive
    Audio Device Microphone Model VCM34 Video Conferencing Microphone Array CP960 Video Conference Phone
    Voice pickup distance 20ft / 6 meters 20ft / 6 meters
    3-microphone array
    Expansion Microphones/Maximum devices in one system up to 4 units in one system 2 x CP Wireless Expansion Mic CPW90 or
    2 x CP Wired Expansion Mic CPE90
    Noise Proof technology
    Speaker MSpeaker (Optional) CP960 built-in speaker
    Touch Controller Touch Controller Model CTP20 Collaboration Touch Panel CP960 Video Conference Phone
    Display 13.3-inch full-fit capacitive touchscreen (1920 x 1080) 5-inch capacitive touchscreen  (720 x 1280)
    Maximum devices connections simultaneously 4 1
    Touch Pen support active pressure capacitance pen X
    Collaboration Features Whiteboard
    Annotation on content sharing
    Multi-screen interaction
    Reverse control √* √*
    Network &
    Security
    TCP/IP IPv4 & IPv6 IPv4 & IPv6
    Communication protocols H.323 / SIP H.323 / SIP
    Traversal features ICE/TURN/STUN/NAT/H.460 ICE/TURN/STUN/NAT/H.460
    Encryption SRTP/TLS/H.235/AES 256-bit SRTP/TLS/H.235/AES 256-bit
    Physical
    Connections
    Video output 2 x HDMI 2 x HDMI
    Video input for content 1 x HDMI
    1 x Mini DP
    1 x HDMI
    1 x Mini DP
    VCH/Phone port 1 x RJ45 1 x RJ45
    Line-in/Line-out
    USB interface 2 x USB2.0 in VC800 codec
    1 x USB2.0 in VCH50 cable hub
    1 x USB2.0 in CTP20
    2 x USB2.0 in VC800 codec
    1 x USB2.0 in VCH50 cable hub
    1 x USB2.0 in CTP20
    Network interface 1 x 10/100/1000M Ethernet 1 x 10/100/1000M Ethernet
    Power adapter 48V/0.7A 48V/0.7A
    Video Codec H.265, H.264 High Profile, H.264, H.263, H.263+
    Audio Codec ARES, Opus, G.722.1C, G.722.1, G.722, G.711 (PCMU/PCMA), G.729
    Video Resolution 1080P, 720P, 540P, 360P, 4CIF, CIF
    Compatible Cloud Yealink Meeting Server, Yealink Cloud Management Service, Pexip, Mind, Zoom, BlueJeans
    *Reverse control needs to be used with WPP20
    CTP20 WPP20 VCM34 VCC22

    CTP20

    • 13.3 inch IPS FHD 1080P capacitive touch screen
    • Supports active pressure capacitance touch pen
    • Supports whiteboard
    • Supports annotation on content sharing
    • Connect to VCS endpoint via cable or Wi-Fi
    • Power over Ethernet (PoE)
    • Datasheet Download

    WPP20

    • With a universal USB port, plug and play
    • 5GHz 802.11ac Wi-Fi network
    • 1080P@30fps FHD and low-latency content sharing
    • Embedded Meeting Assistant Software
    • Support Windows / macOS
    • Support Apple AirPlay
    • Datasheet Download

    VCM34

    • Built-in 3-microphone array
    • 20ft(6m) and 360° voice pickup range
    • Yealink Noise Proof Technology
    • Power over Ethernet (PoE)
    • Up to 4 units can be cascaded
    • Datasheet Download

    VCC22

    • 12x optical, Pan/Tilt/Zoom functionality
    • Full HD 1080p video quality
    • Power over Ethernet (PoE)
    • Power supply/video/control three-in-one
    • 1+8 multi-camera solution with VC800
    • Multi-camera image splice
    • Camera layout adjustment
    • Up to 99 presets
    • Datasheet Download
    CPW90

    CPW90

    • Optima HD voice
    • Full duplex technology
    • 10-foot (3-meter) 360° voice pickup
    • Capacitive mute touchpad
    • Echo cancellation
    • DECT Technology
    • Datasheet Download
