    Yealink ZVC830 Zoom Rooms Kit
    For large and extra-large rooms
    ZVC830 with 3 mics for large rooms | ZVC830 with 4 mics for extra-large rooms

    Key features:
    The Yealink ZVC830 Rooms Kit is designed for large and extra-large rooms. It is a complete Zoom Rooms package containing a full hardware suite (mini-PC, touch console, camera, audio devices) as well as the requisite software and license.

    Yealink VCM34 Array Microphone has 20ft (6-meter) voice pickup range, featuring Yealink Noise Proof technology, everyone’s voice in the room is heard clearly.

    The Yealink UVC80 features a 12x optical PTZ camera for sharp, smooth and stable video with a deep focus field. The wide-angle horizontal field-of-view lens and adjustable camera angle provide a broad view of board and training rooms.

    What's included:
    • Mini-PC and cable management box
    • Yealink MTouch console
    • Yealink UVC80 USB PTZ camera
    • Yealink MSpeaker soundbar
    • 3-4 Yealink VCM34 microphone

    Yealink ZVC830 Zoom Rooms Kit
    For large and extra-large rooms
    ZVC830 with 3 mics for large rooms | ZVC830 with 4 mics for extra-large rooms

    Key features:
    The Yealink ZVC830 Rooms Kit is designed for large and extra-large rooms. It is a complete Zoom Rooms package containing a full hardware suite (mini-PC, touch console, camera, audio devices) as well as the requisite software and license.

    Yealink VCM34 Array Microphone has 20ft (6-meter) voice pickup range, featuring Yealink Noise Proof technology, everyone’s voice in the room is heard clearly.

    The Yealink UVC80 features a 12x optical PTZ camera for sharp, smooth and stable video with a deep focus field. The wide-angle horizontal field-of-view lens and adjustable camera angle provide a broad view of board and training rooms.

    What's included:
    • Mini-PC and cable management box
    • Yealink MTouch console
    • Yealink UVC80 USB PTZ camera
    • Yealink MSpeaker soundbar
    • 3-4 Yealink VCM34 microphone

    Components

    Yealink UVC80 USB PTZ Camera

    Key features:
    • 1080p/60fps video resolution
    • 12x optical zoom
    • Field of view (diagonal): 78.5°
    • Pan range: 200°
    • Tilt range: 60°

    Yealink UVC80 USB PTZ Camera

    Key features:
    • 1080p/60fps video resolution
    • 12x optical zoom
    • Field of view (diagonal): 78.5°
    • Pan range: 200°
    • Tilt range: 60°

    Yealink MTouch Console

    Key features:
    • 8-inch IPS screen
    • 1280 x 800 resolution
    • 10-point capacitive touch screen
    • Human motion sensor
    • Angle adjustable bracket (23°-50°)

    Yealink MTouch Console

    Key features:
    • 8-inch IPS screen
    • 1280 x 800 resolution
    • 10-point capacitive touch screen
    • Human motion sensor
    • Angle adjustable bracket (23°-50°)

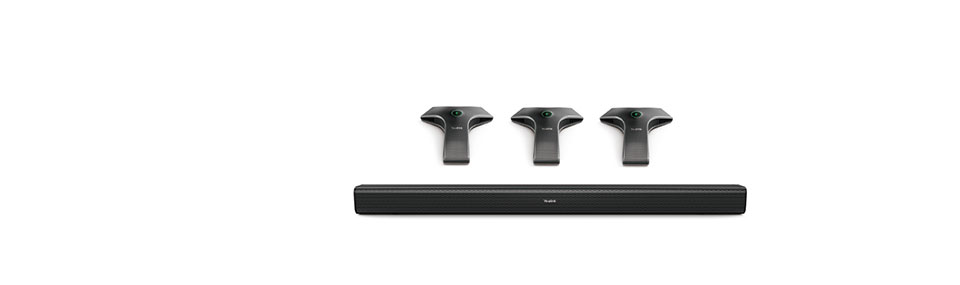

    Yealink VCM34 Array Microphone + Mspeaker

    Key features:
    Yealink VCM34

    • Built-in 3-microphone array
    • 20ft(6-meter) voice pickup range
    • Cascade connection up to 4 units
    • Yealink Noise Proof Technology
    • Mute button with LED
    Yealink MSpeaker
    • Output(THD=1.0%)RMS: 10W*4
    • Frequent response: 60Hz-20K Hz
    • S/N: ≥70dB

    Yealink VCM34 Array Microphone + Mspeaker

    Key features:
    Yealink VCM34

    • Built-in 3-microphone array
    • 20ft(6-meter) voice pickup range
    • Cascade connection up to 4 units
    • Yealink Noise Proof Technology
    • Mute button with LED
    Yealink MSpeaker
    • Output(THD=1.0%)RMS: 10W*4
    • Frequent response: 60Hz-20K Hz
    • S/N: ≥70dB


    If you need assistance or have questions, please contact us via zoominfo@yealink.com




    If the componets you have is of standard firmware version rather than a Zoom Edition, please download and upgrade to the Zoom Edition firmware, as well as apply and import the license.




    How to deploy?






    For more complete product documentation, click Here
