    Yealink VC800Yealink VC800
    Model VC800
    Show the differences
    Download Datasheet

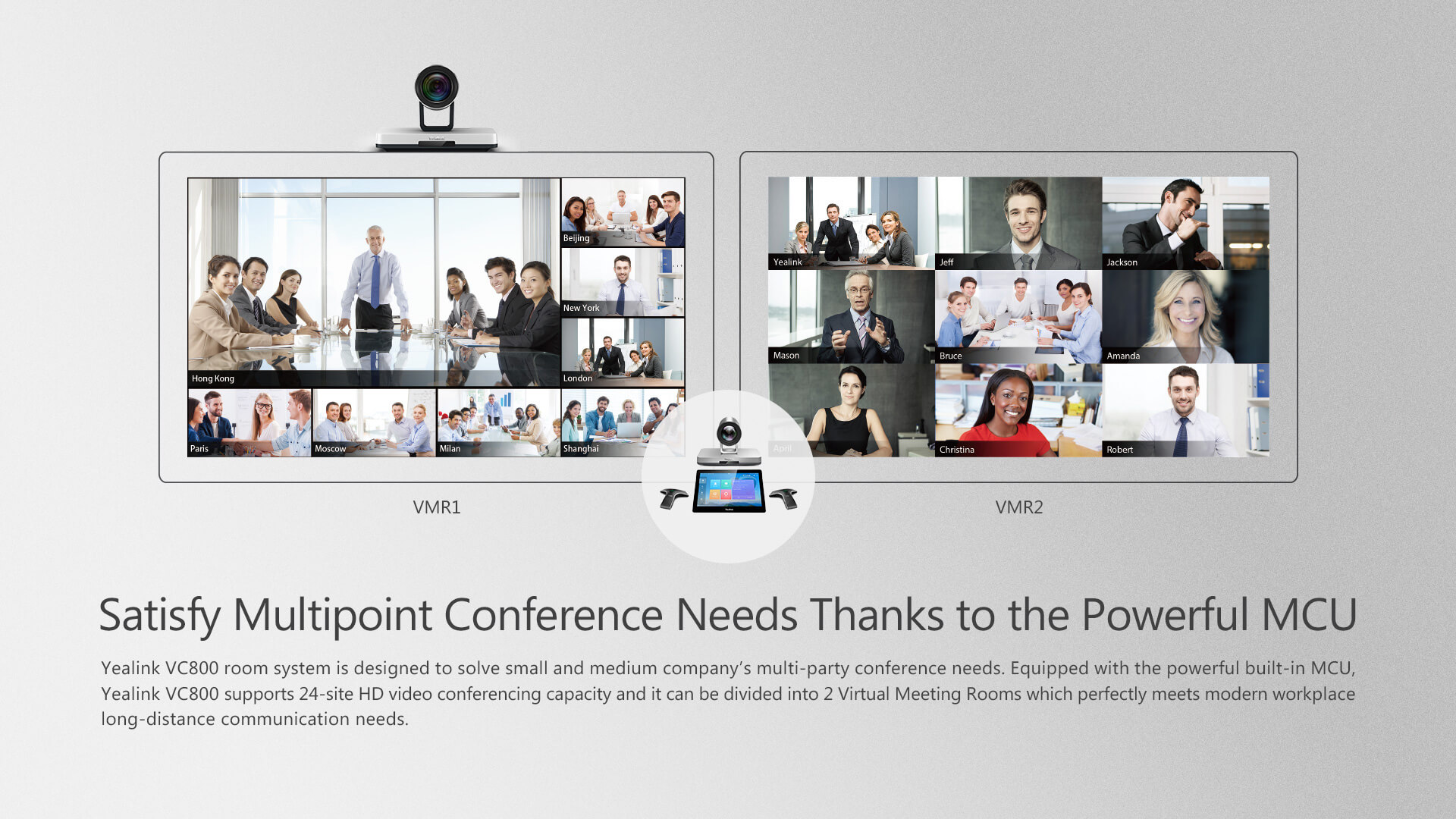

    Multipoint Maximum multipoint capability up to 24 sites
    Virtual meeting rooms 2
    Automatic voice activated switching layout
    Camera Features Zoom 12X optical
    Frame rate 60 FPS
    Horizontal field of view 70°

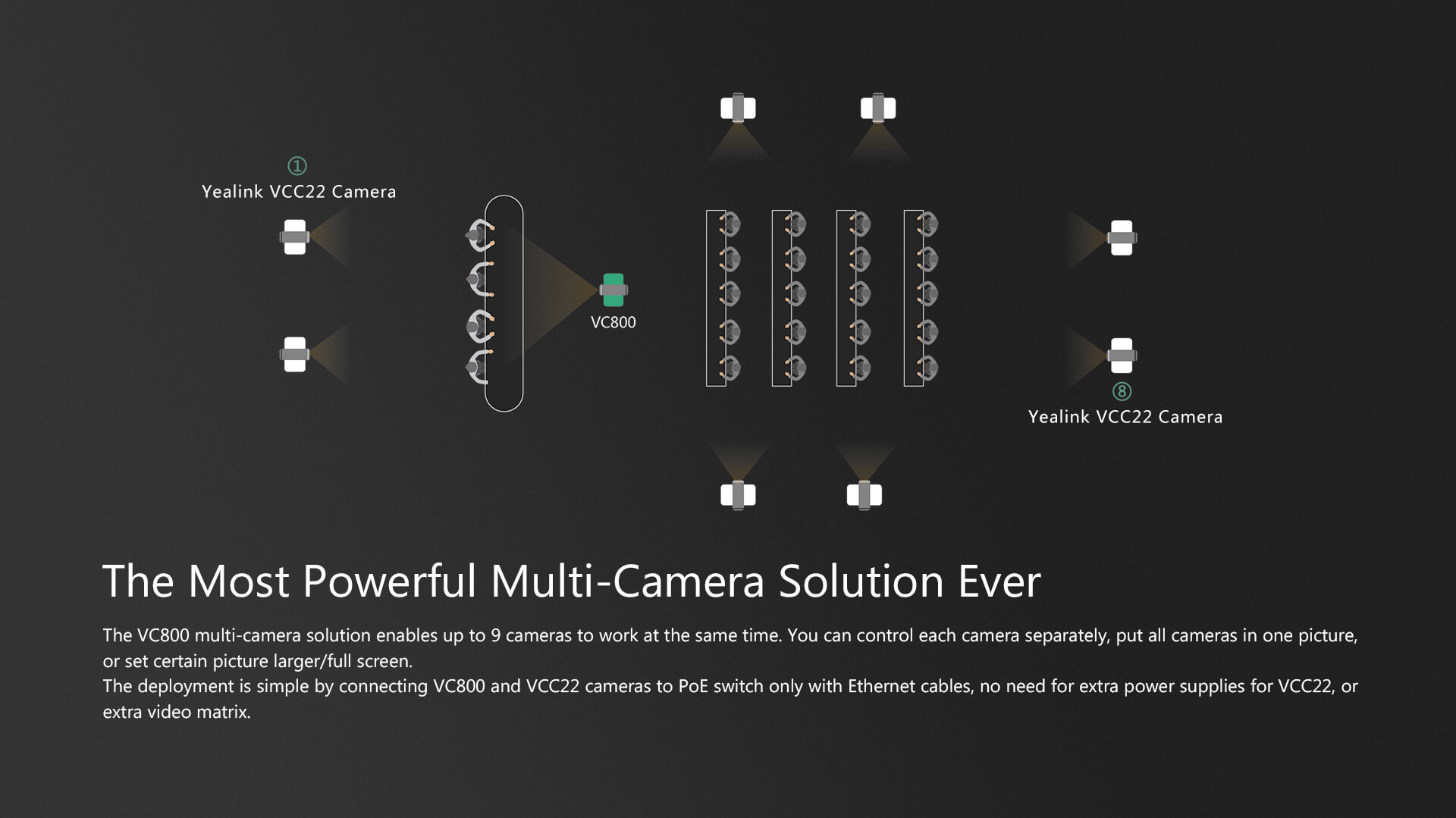

    Multi-camera solution Support up to 1+8 cameras
    Video Features Video call quality up to 1080p60fps
    Bandwidth requirement 1080P from 512kbps in H.265
    Video packet Loss recovery 30%
    Local HD recording to USB flash drive
    Collaboration Touch Panel Display 13.3-inch full-fit capacitive touch screen
    Maximum devices connections simultaneously 4
    Touch Pen support active pressure capacitance pen
    Video Conferencing Microphone Array 3-microphone array
    voice pickup range 20ft / 6 meters
    Maximum devices connections simultaneously 4
    Yealink Noise Proof Technology

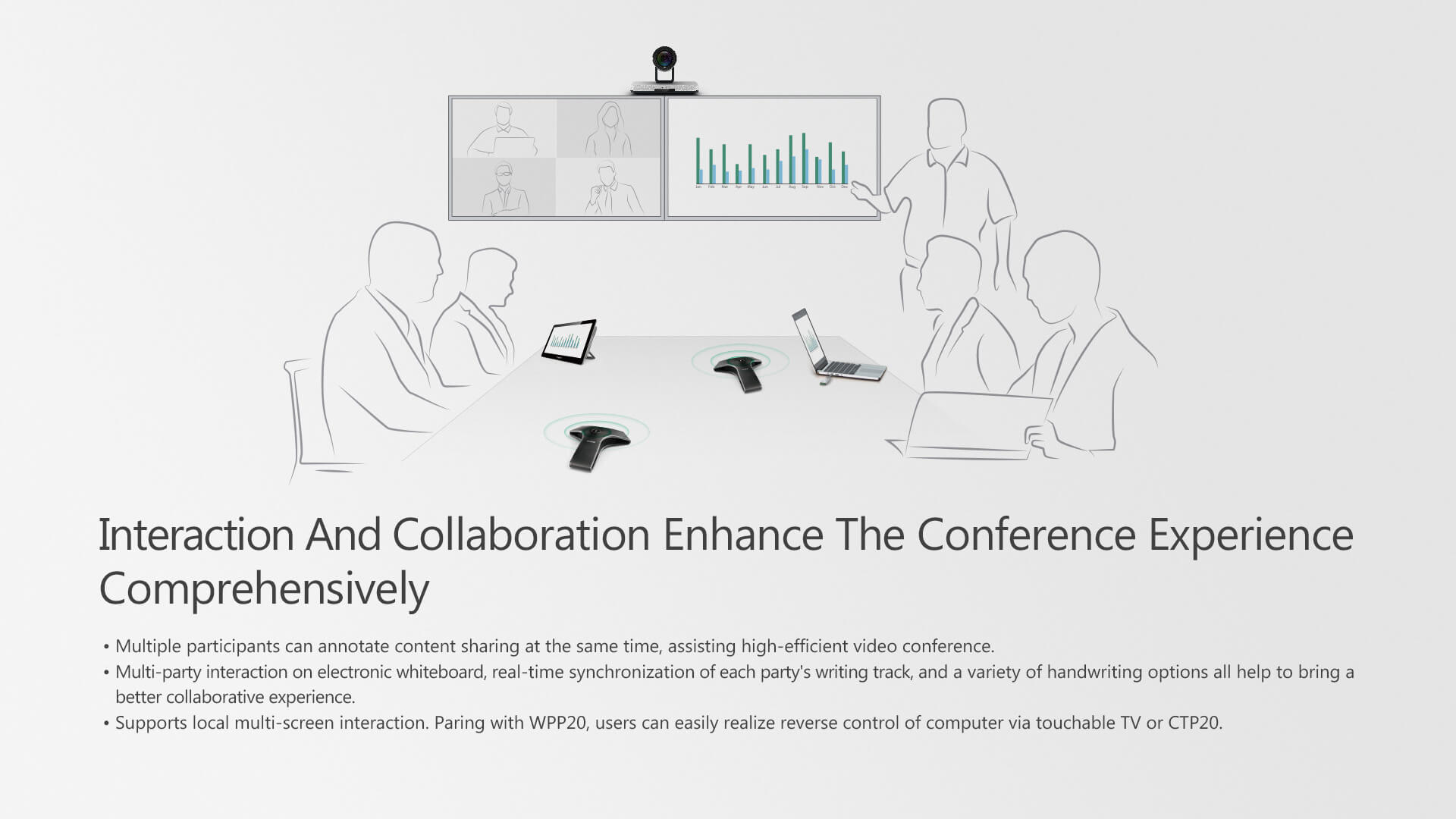

    Collaboration Features Whiteboard
    Annotation on content sharing
    Multi-screen interaction
    Reverse control √*
    Network &
    Security
    TCP/IP IPv4 and IPv6
    Communication protocols H.323 / SIP
    Traversal features ICE/TURN/STUN/NAT/H.460
    Encryption SRTP/TLS/H.235/AES 256-bit
    Physical
    Connections
    Video output 2 x HDMI
    Video input for content 1 x HDMI &
    1 x Mini Display Port
    VCH/Phone port 1 x RJ45
    Line-in/Line-out
    USB interface 2 x USB2.0 in VC800 codec
    1 x USB2.0 in VCH50 cable hub
    1 x USB2.0 in CTP20
    Network interface 1 x 10/100/1000M Ethernet
    Power adapter 48V/0.7A
    Video Codec H.265, H.264 High Profile, H.264, H.263, H.263+
    Audio Codec ARES, Opus (8-48kHz), G.722.1C, G.722.1, G.722, G.711 (PCMU/PCMA), G.729
    Video Resolution 1080P, 720P, 540P, 360P, 4CIF, CIF
    Compatible Cloud Yealink Meeting Server, Yealink Cloud Management Service, Pexip, Mind, Zoom, BlueJeans
    *Reverse control needs to be used with WPP20
    CTP20 WPP20 VCM34 VCC22

    CTP20

    • 13.3 inch IPS FHD 1080P capacitive touch screen
    • Supports active pressure capacitance touch pen
    • Supports whiteboard
    • Supports annotation on content sharing
    • Connect to VCS endpoint via cable or Wi-Fi
    • Power over Ethernet (PoE)
    • Datasheet Download

    WPP20

    • With a universal USB port, plug and play
    • 5GHz 802.11ac Wi-Fi network
    • 1080P@30fps FHD and low-latency content sharing
    • Embedded Meeting Assistant Software
    • Support Windows / macOS
    • Support Apple AirPlay
    • Datasheet Download

    VCM34

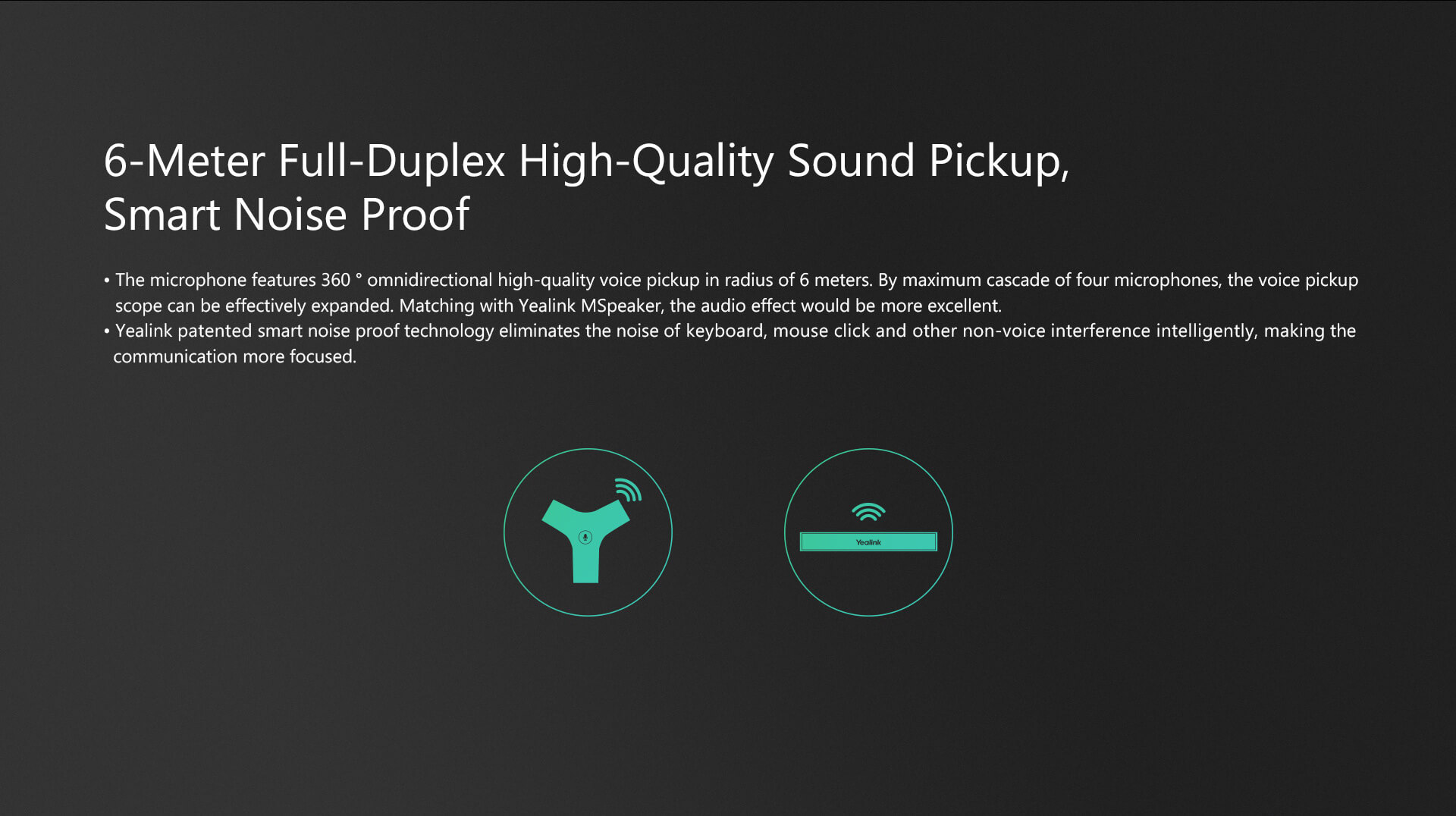

    • Built-in 3-microphone array
    • 20ft(6m) and 360° voice pickup range
    • Yealink Noise Proof Technology
    • Power over Ethernet (PoE)
    • Up to 4 units can be cascaded
    • Datasheet Download

    VCC22

    • 12x optical, Pan/Tilt/Zoom functionality
    • Full HD 1080p video quality
    • Power over Ethernet (PoE)
    • Power supply/video/control three-in-one
    • 1+8 multi-camera solution with VC800
    • Multi-camera image splice
    • Camera layout adjustment
    • Up to 99 presets
    • Datasheet Download
    CPW90

    CPW90

    • Optima HD voice
    • Full duplex technology
    • 10-foot (3-meter) 360° voice pickup
    • Capacitive mute touchpad
    • Echo cancellation
    • DECT Technology
    • Datasheet Download
