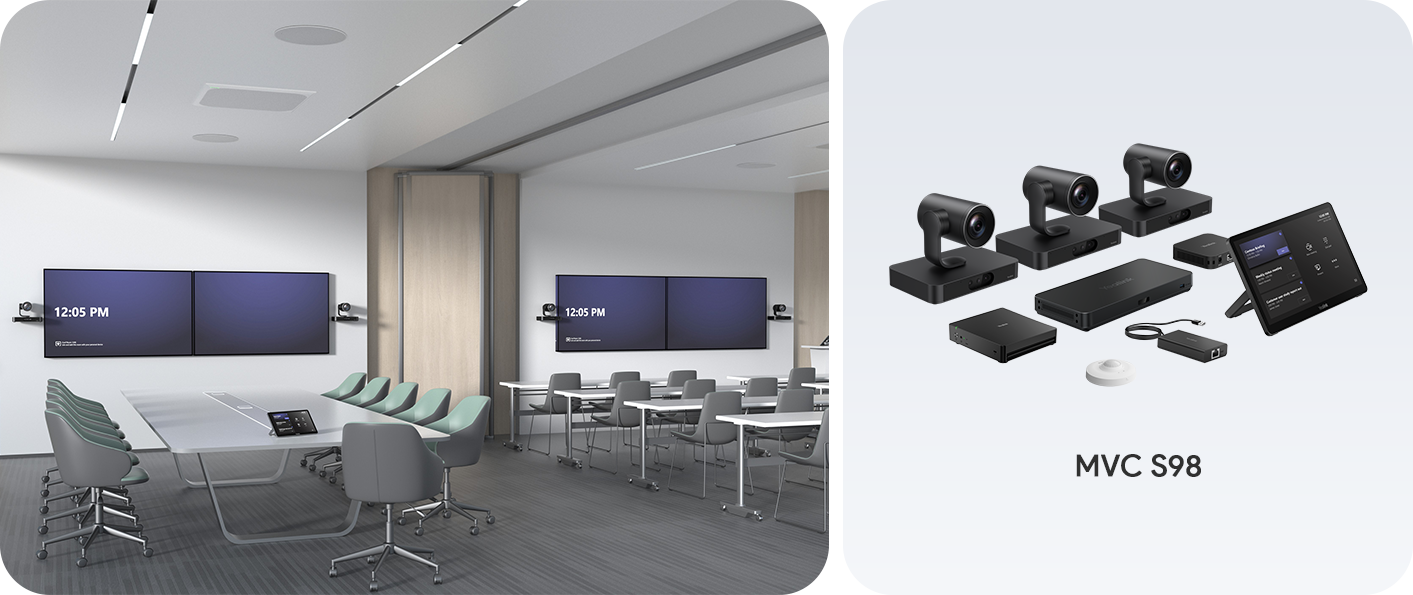

Designed for ProAV rooms, MVC S98 is a bundle solution with multiple SmartVision 80 cameras,
mini-PC MCore 4 and touch panel MTouch Plus.
It features advanced AI features powered by unrivalled four-lens camera system and future-proof computing power,
supporting easy deployment & flexible design and seamless ProAV integration.

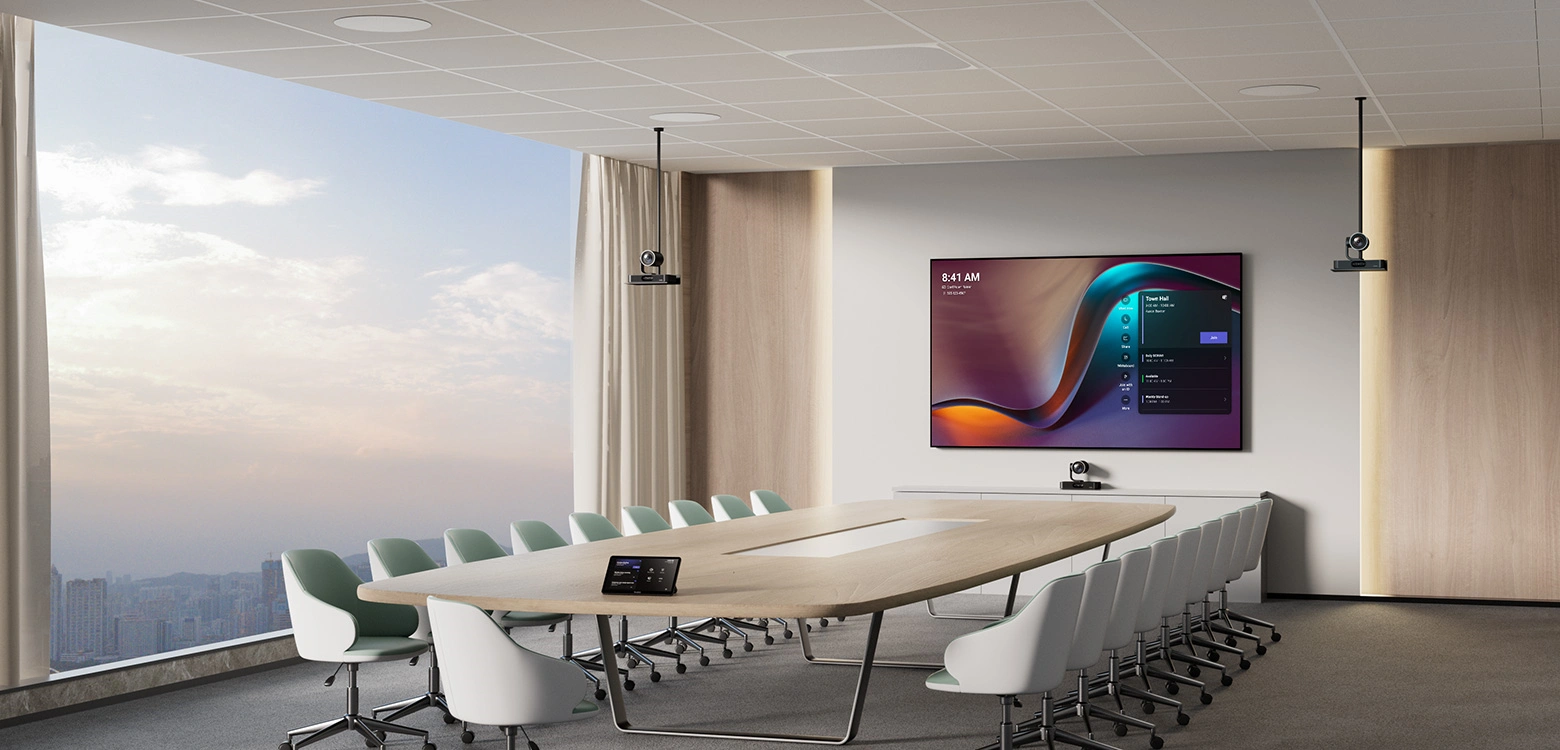

Multi-Camera Best View
Multiple SmartVision 80 cameras work together as a system to cover large rooms,
ensuring everyone is clearly seen from the best possible angle.
Intelligent in Every View
Multi-Camera IntelliFocus
The IntelliFocus feature smoothly displays real-time close-ups of the recent speakers, enhancing major focus on active speakers and face-to-face experience.
Multi-Stream IntelliFrame
Each participant has their own video stream and name tag, clearly and equally visible in Teams. Every speaker is presented front and centered.

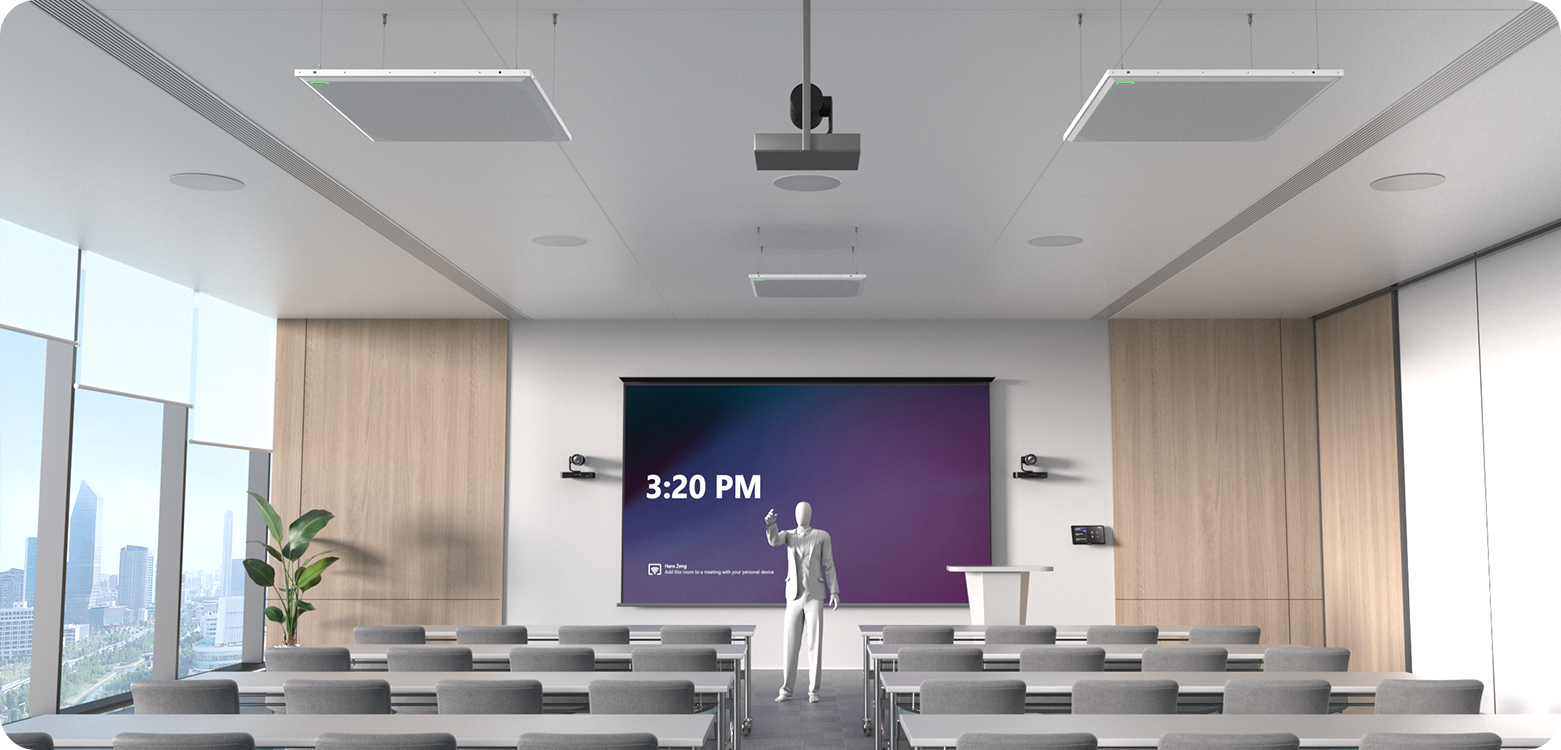

Presenter Tracking
Presenter Tracking delivers smooth, lossless tracking with up to 20x optical zoom, maintaining crystal-clear image quality even at distances of up to 20 meters.

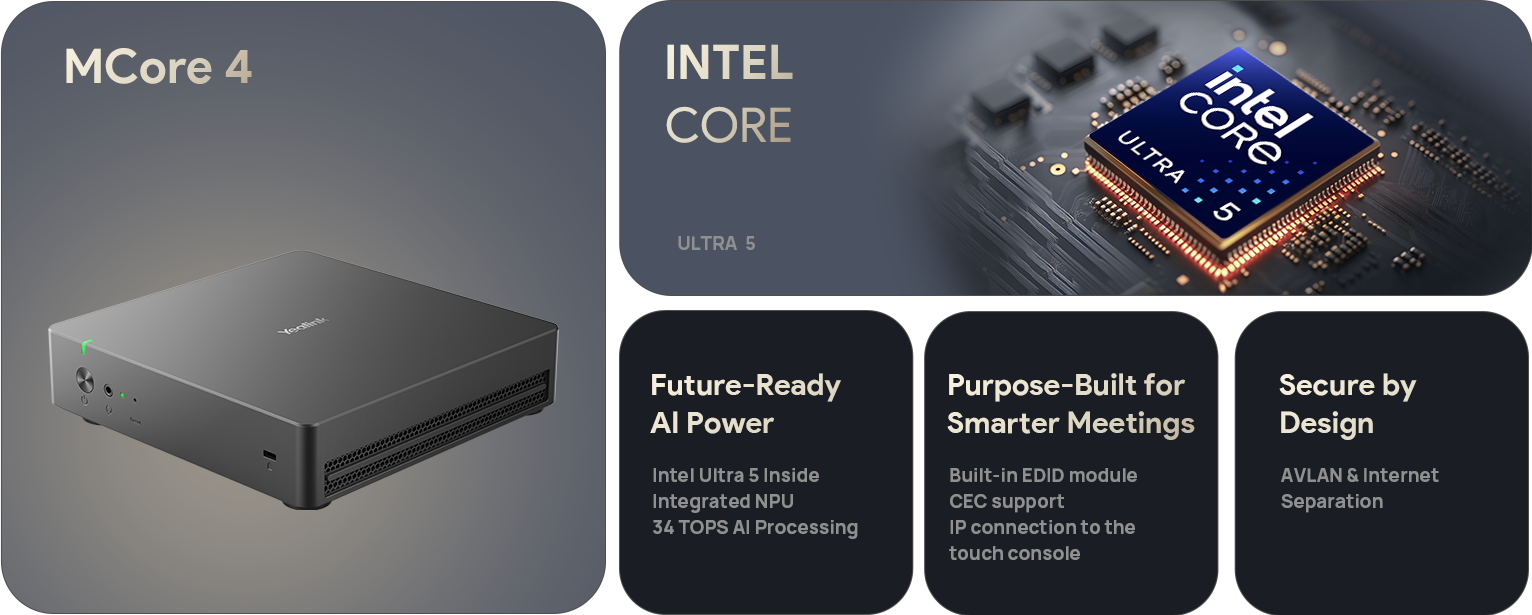

Future-Ready AI Power
Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module, CEC support, and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control.
With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.

Control Freely
The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.

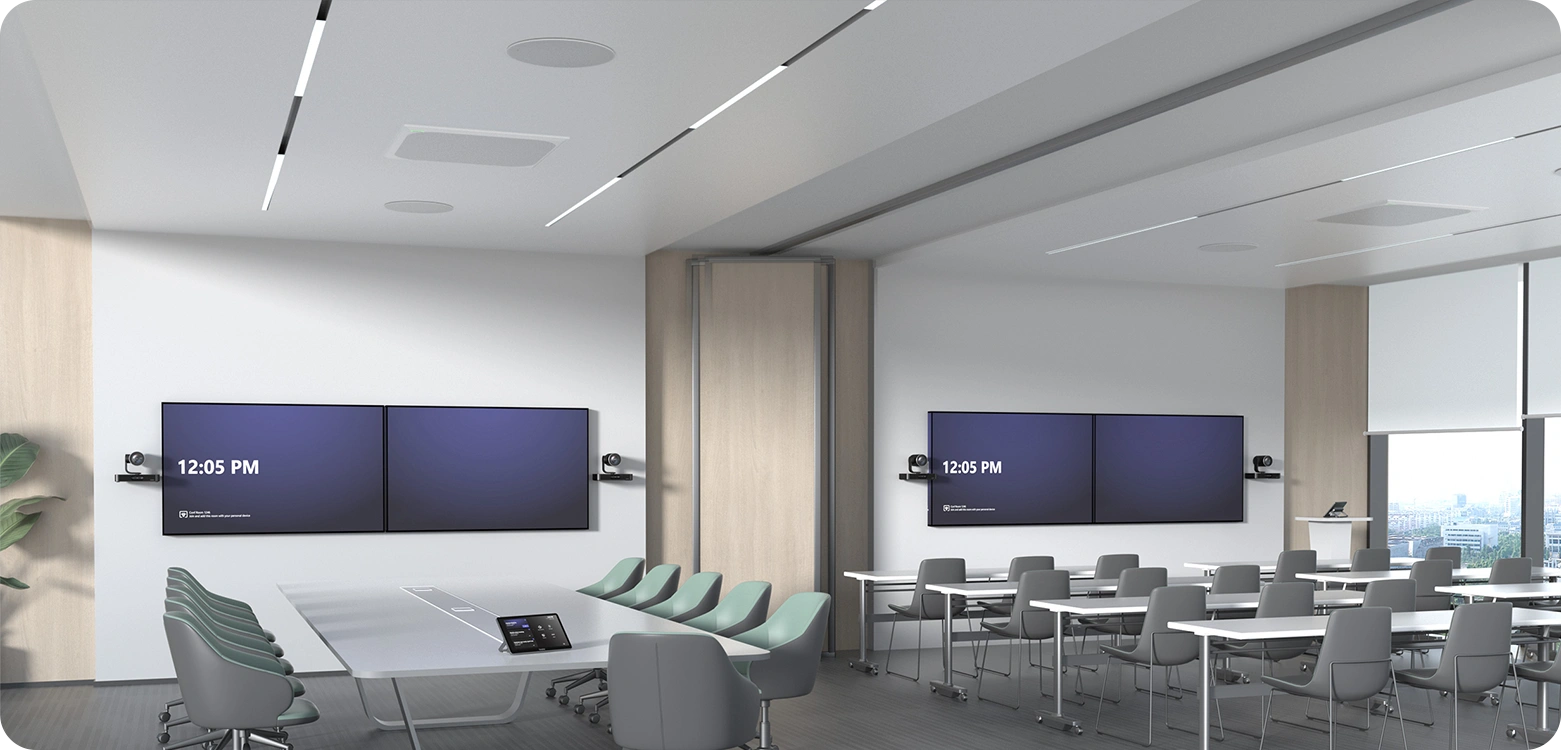

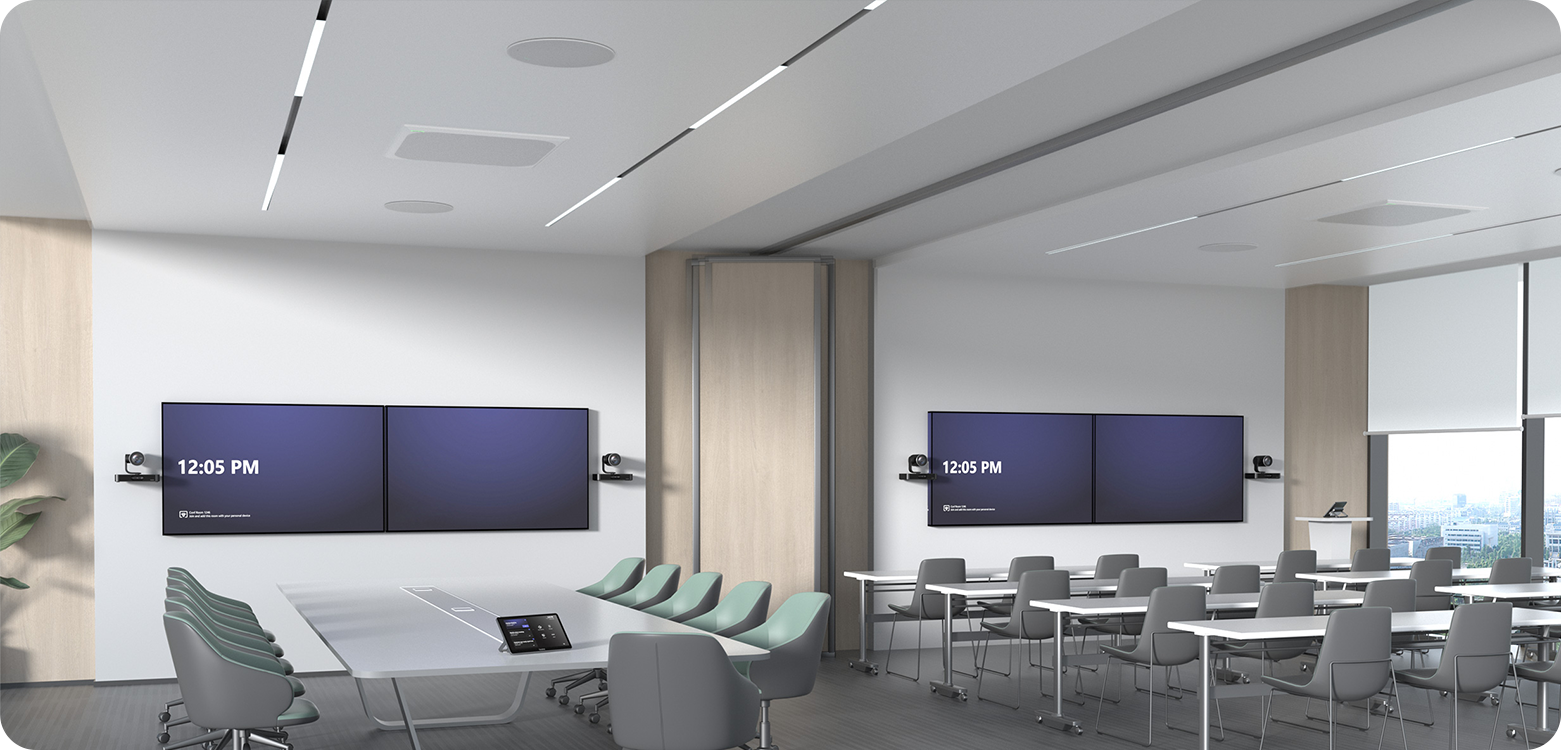

Designed for ProAV Rooms
Flexible Audio Solutions
MVC S98 can be seamlessly integrated with Yealink pro audio solutions. Choose from a range of voice pickup devices, such as CM50 ceiling microphone, CS10-D ceiling loudspeaker, and AP08 digital signal processor to meet your specific audio needs.

Yealink MVC S98 Specifications
SmartVision 80
Intelligent PTZ Camera
• Industry-leading 3+1 eye PTZ Camera with 20x Optical lens
• Angle of view:
-69° DFOV, 61.5° HFOV, 36° VFOV ( PTZ camera)
-110° DFOV, 98° HFOV, 82° VFOV (Panoramic lens)
-51° DFOV, 41.6° HFOV, 32° VFOV (Telephoto lens)
• Qualcomm QCS8550 inside, 48Tops Computing Power
• Built-in 4-Mic Array
• NDI | HX3, Dante compatible
• Camera AI:
IntelliFocus, Speaker Tracking, Presenter Tracking, Video Fence, Picture in Picture, Auto Framing, IntelliFrame

MCore 4
AI PC
• Processor: Intel Core Ultra 5, Built-in NPU. 34Tops Computing Power
• Memory: 16GB(2*8GB) DDR5
• Storage: 256GB SSD
• Built-in EDID
• 3x HDMI video output with CEC supported
• HDMI-in for 4K content sharing
• IP connection with Touch console
• Bluetooth and Wi-Fi
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB3.0

MTouch Plus
Touch Console
• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30°~70°)
• Support wired and wireless (with WPP30) content sharing
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor
• Detection:
- Occupancy
- Temperature
- Humidity
- Light
• Protocol: Bluetooth BLE 5.2
• Frequency band: 2.4 GHz
• Reach: 30 m (100 ft)
• Multi-connectivity: Maximum 4 simultaneously, BLE mesh

This product is intended for business customer and is distributed through authorized business-to-business (B2B) partners.
