Details Specifications Resources Videos Accessories

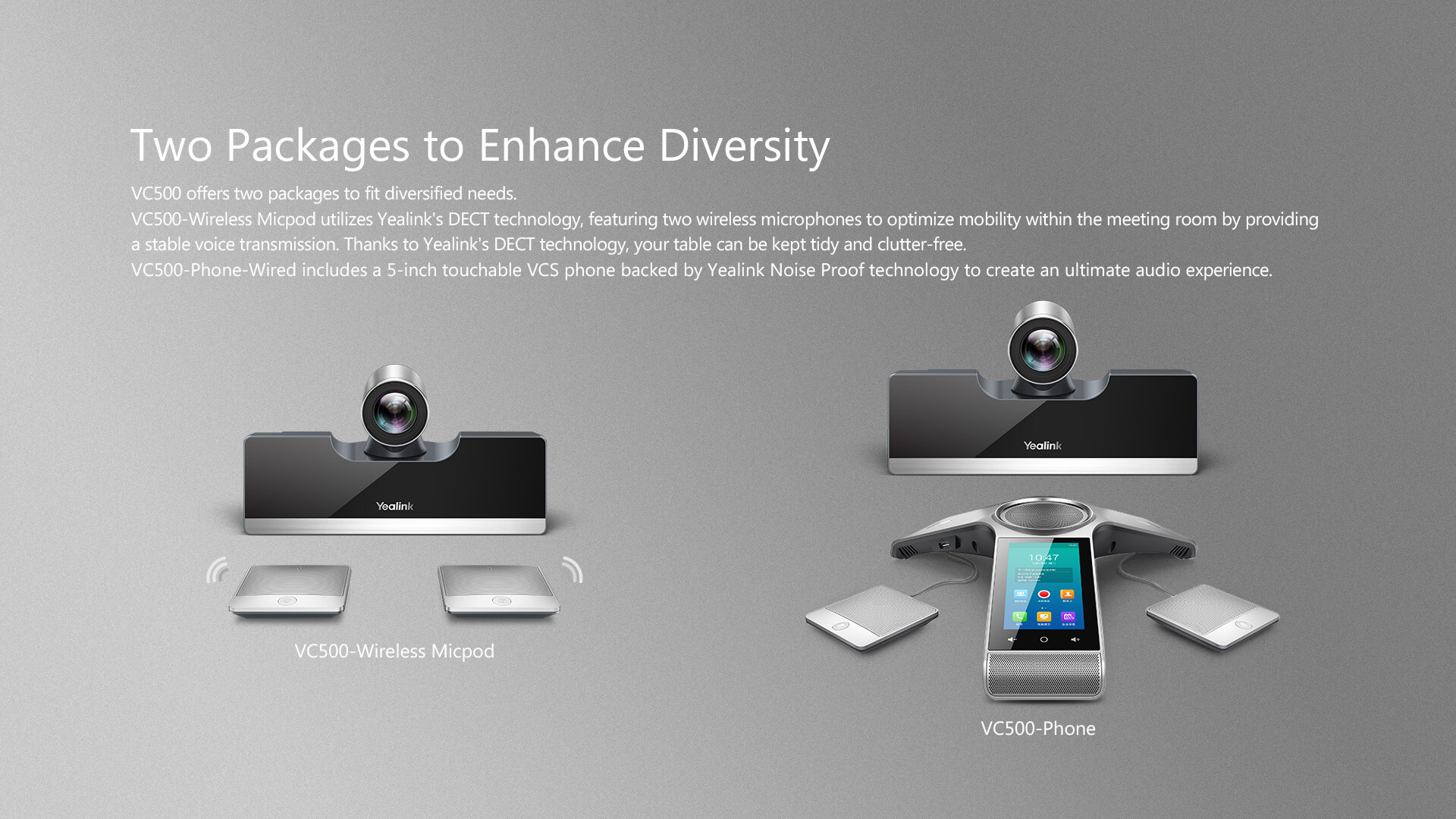

Model VC500-VCM-CTP VC500-Wireless Micpod
Show the differences
Download Datasheet Datasheet
Camera Features Zoom 5X optical 5X optical
Frame rate 60 FPS 60 FPS

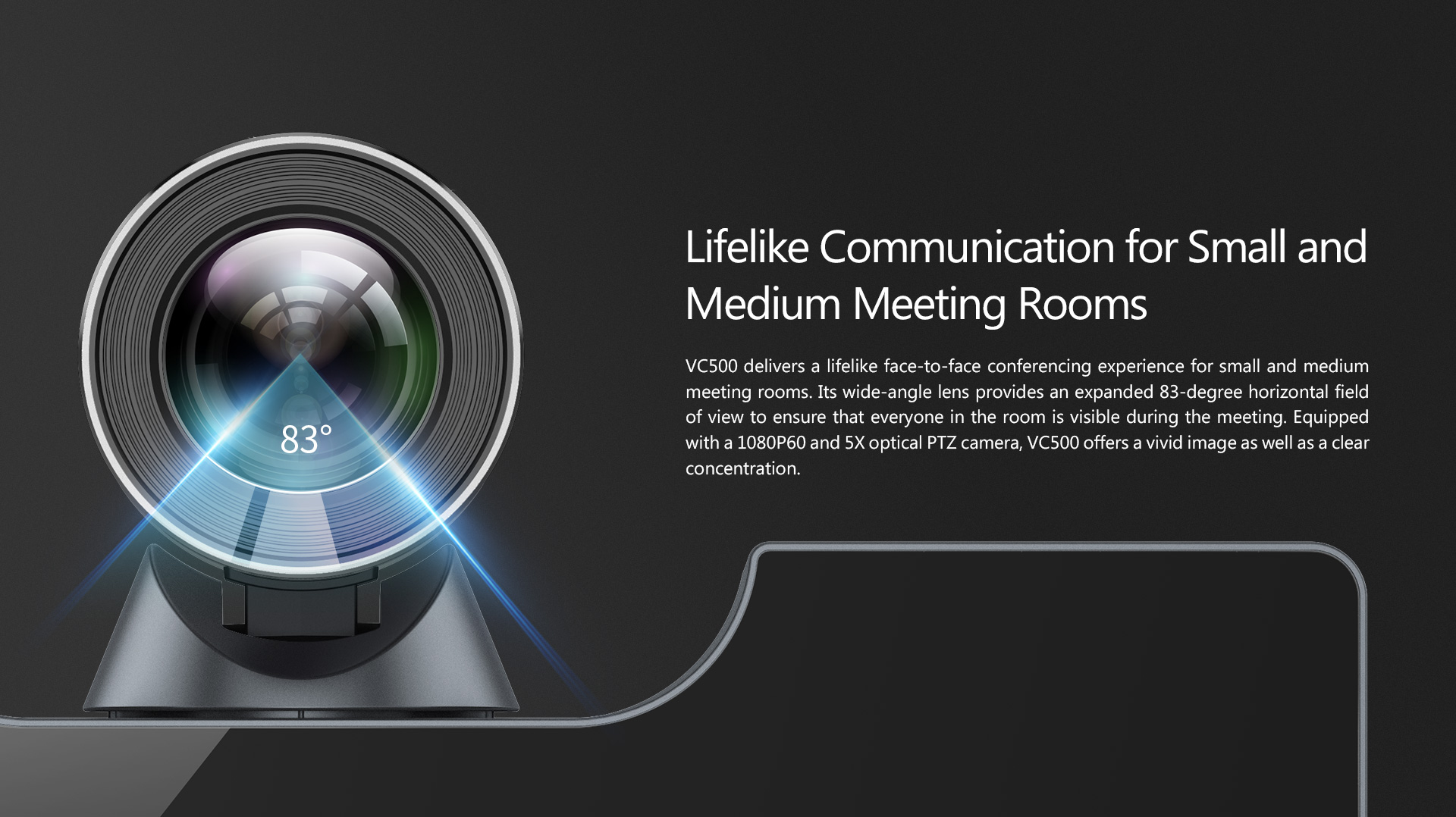

Horizontal field of view 83° 83°
Video Features Video call quality Up to 1080p60fps Up to 1080p60fps
H.265/HEVC
Bandwidth requirement 1080P from 512kbps in H.265 1080P from 512kbps in H.265
Video packet loss recovery 30% 30%
Local HD recording to USB flash drive
Microphone Microphone Model VCM34 2 x wireless microphones
Voice pickup distance 20ft / 6 meters 10ft / 3 meters (each mic)
3-microphone array x
Noise proof technology
Collaboration Touch Panel Display 13.3-inch full-fit capacitive touch screen x
Maximum devices connections simultaneously 4 x
Touch Pen support active pressure capacitance pen x
Collaboration Features Whiteboard
Annotation on content sharing
Multi-screen interaction
Reverse control √* √*
Network & Security TCP/IP IPv4 and IPv6 IPv4 and IPv6
Communication protocols H.323 / SIP H.323 / SIP
Traversal features ICE/TURN/STUN/NAT/H.460 ICE/TURN/STUN/NAT/H.460
Encryption SRTP/TLS/H.235/AES 128-bit SRTP/TLS/H.235/AES 256-bit
Physical
Connections
Video output 2 x HDMI 2 x HDMI
Video input for content 1 x HDMI &
1 x Mini Display Port
1 x HDMI &
1 x Mini Display Port
VCH/Phone port 1 x RJ45 1 x RJ45
USB interface 2 x USB2.0 in VC500 codec
1 x USB2.0 in VCH50 cable hub
1 x USB2.0 in CTP20
2 x USB2.0 in VC500 codec
1 x USB2.0 in VCH50 cable hub
Network interface 1 x 10/100/1000M Ethernet 1 x 10/100/1000M Ethernet
Power adapter 48V/0.7A 48V/0.7A
Video Codec H.265, H.264 High Profile, H.264, H.263, H.263+
Audio Codec ARES, Opus (8-48kHz), G.722.1C, G.722.1, G.722, G.711 (PCMU/PCMA), G.729
Video Resolution 1080P, 720P, 540P, 360P, 4CIF, CIF
Compatible Cloud Yealink Meeting Server, Yealink Cloud Management Service, Pexip, Mind, Zoom, BlueJeans
*Reverse control needs to be used with WPP20
CTP20 WPP20 VCM34 CPW90 CPE90

CTP20

  • 13.3 inch IPS FHD 1080P capacitive touch screen
  • Supports active pressure capacitance touch pen
  • Supports whiteboard
  • Supports annotation on content sharing
  • Connect to VCS endpoint via cable or Wi-Fi
  • Power over Ethernet (PoE)
  • Datasheet Download

WPP20

  • With a universal USB port, plug and play
  • 5GHz 802.11ac Wi-Fi network
  • 1080P@30fps FHD and low-latency content sharing
  • Embedded Meeting Assistant Software
  • Support Windows / macOS
  • Support Apple AirPlay
  • Datasheet Download

VCM34

  • Built-in 3-microphone array
  • 20ft(6m) and 360° voice pickup range
  • Yealink Noise Proof Technology
  • Power over Ethernet (PoE)
  • Up to 4 units can be cascaded
  • Datasheet Download

CPW90

  • Optima HD voice
  • Full duplex technology
  • 10-foot (3-meter) 360° voice pickup
  • Capacitive mute touchpad
  • Echo cancellation
  • DECT Technology
  • Datasheet Download

CPE90

  • Optima HD voice
  • Full duplex technology
  • 10-foot (3-meter) 360° voice pickup
  • Capacitive mute touchpad
  • Echo cancellation
  • Datasheet Download
